DJI Zenmuse H30 Worry-Free Basic Combo

Out of Stock

Features:

  • Further and Clearer Vision
  • Enhanced Night Vision
  • More Powerful Infrared Performance
  • Smarter Multi-Scenario Operations
  • More Reliable Information Sync and Retention
  • Superior Environmental Adaptability

Compatibility:

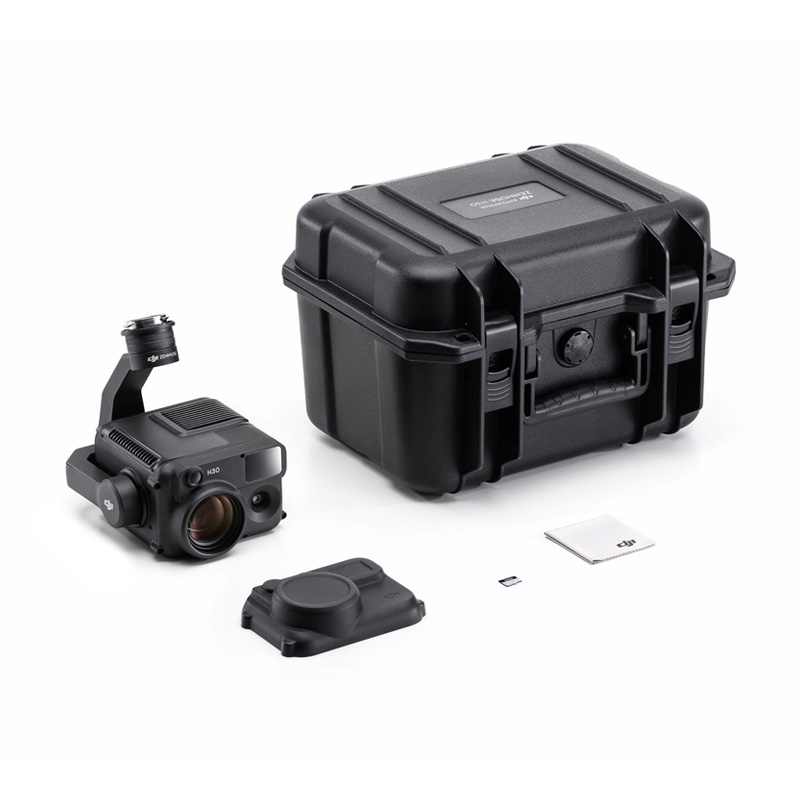

In the box:

  • DJI Zenmuse H30 ×1
  • Lens Cap ×1
  • microSD Card (64GB) ×1
  • Storage Case ×1
  • Lens Cleaning Cloth ×1

Ask for prices

More details

4 855,00 € VAT incl. (20%)
4 045,83 € VAT excl.

More info

Unparalleled Vision, Day or Night

The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules - a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations, including public safety, energy inspection, water conservation, and forestry.

Versatile Performance, Day and Night

Zoom Camera

  • Measurement Range: 3-3000 m
  • Measurement Accuracy:≤ 500 m: ±(0.2 m+measurement distance×0.15%)‌> 500 m: ±1.0 m

Wide-Angle Camera

  • Equivalent Focal Length: 24mm, DFOV: 82.1°
  • 48MP 1/1.3-inch CMOS Sensor
  • Video Resolution: Max 3840×2160@30fps

Laser Range Finder

  • Measurement Range: 3-3000 m
  • Measurement Accuracy:≤ 500 m: ±(0.2 m+measurement distance×0.15%)‌> 500 m: ±1.0 m

Infrared Thermal Camera (H30T only)

  • Equivalent Focal Length: 52mm, DFOV: 45.2°
  • Uncooled VOx Microbolometer
  • Photo Resolution: 1280×1024
  • Video Resolution: 1280×1024@30fps
  • Temperature Measurement Range from -20° to 1600°C [1]

NIR Auxiliary Light

  • Wavelength: 850 nm
  • FOV: 4.6±0.6° (Round)
  • Safety Rating: Class 1
  • Illumination Range: Approx. 8m diameter circle at 100m distance

Further and Clearer ‌Vision

Up to 34× Optical Zoom‌ and 400× Digital Zoom

The Zenmuse H30 Series features a high-resolution 40MP zoom camera, supporting up to 34× optical zoom and an incredible 400× digital zoom. Compared to the previous generation, [2] it not only observes subjects at greater distances but also captures more details.

More Stable Imagery from the Zoom Camera

With DJI's latest image stabilization algorithm, the Zenmuse H30 Series can effectively diminish shake in telephoto footage, delivering stable and clear imagery for detailed power line inspections.

Max 3000m Laser Range Finder

The laser range finder boasts a measurement range up to 2.5 times greater than the previous generation, [3] accurately capturing the position information of subjects within a range from 3 m to 3000 m, [4] including linear distance from the camera, altitude, and GPS coordinates.

Enhanced Night Vision

Supports Full-Color Night Vision

Both the zoom and wide-angle cameras of the Zenmuse H30 Series can switch to Night Scene mode in low-light conditions, enhancing live view and recording quality. This ensures operational efficiency and accuracy at night, enabling continuous operation from day to night.

Supports Black and White Night Vision and NIR Illumination

In Night Scene mode, the Zenmuse H30 Series zoom camera supports IR Light for infrared enhancement and NIR illumination. [5] It switches the live feed to a grayscale image by removing the IR filter, thereby strengthening the contrast between light and dark areas, making it easier to locate subjects. When the NIR auxiliary light is enabled, the zoom camera can benefit from additional NIR illumination, which is especially helpful for covert night surveillance and search-and-rescue operations.

More Powerful Infrared Performance

1280×1024 Infrared Resolution

The infrared thermal camera boasts a resolution of 1280×1024, 4× the previous generation, [6] with up to 32× digital zoom. This allows for both an overview of the entire scene and the ability to zoom in on specific areas. At higher zoom levels, the Zenmuse H30T automatically activates a UHR (Ultra-High Resolution) Infrared Image function,[7] ensuring the infrared images remain clear.

High-Res Mode for Precise Observation

Zenmuse H30T supports three infrared gain modes: High Gain mode for more precise temperature measurement, Low Gain mode for a wider temperature measurement range, and the new High-Res mode, [8] which is especially useful for observing objects, people, or animals with small temperature differences, making it highly practical for security, emergency, and search-and-rescue operations.

Visual and IR Cameras Simultaneous Zoom

The Zenmuse H30T's zoom camera and infrared thermal camera support Link Zoom, allowing operators to scale the visible light and thermal images in tandem and maintain the same viewpoint. This side-by-side comparison of image details helps locate the subject faster, increasing efficiency while saving effort.

Temperature Measurement Range from -20° to 1600°C

With the installation of an infrared density filter, [9] the infrared thermal camera can measure temperatures up to 1600°C, 3× the previous generation. [10] This is particularly useful for firefighting and high-temperature operations as it allows for more effective judgment of temperature changes and rapid locating of hotspots, increasing rescue efficiency.

Smarter Multi-Scenario Operations

Smart Capture for Improved Imaging

In Smart Capture mode, the Zenmuse H30 Series zoom and wide-angle cameras automatically assess the brightness of ambient light and the dynamic range, and apply intelligent image algorithms. This ensures the output of photos with natural transitions between light and dark and rich details, even in environments with high dynamics, strong light, or low light.

Electronic Dehazing

In conditions such as smog or high atmospheric humidity, the Zenmuse H30 Series zoom camera employs a new Electronic Dehazing function [11] to enhance image clarity. It offers low and high dehazing levels to suit different operational environments and requirements.

Superior Environmental Adaptability

IP54 Ingress Protection

With an IP54 dust and water resistance rating, [12] the Zenmuse H30 Series can operate safely and reliably even in harsh working conditions.

-20° to 50°C Operating Temperature

The Zenmuse H30 Series is built to work in temperatures ranging from -20° to 50°C, meeting all-weather operational needs.

More Reliable Information Sync and Retention

Supports Pre-Recording

All cameras of the Zenmuse H30 Series, including the zoom, wide-angle, and infrared thermal cameras, support pre-recording. They can retain footage from 10, 15, or 30 seconds before the formal recording starts, ensuring a more complete record and capturing key information that may otherwise be quickly lost.

Media and Transmission Encryption with One-click Log Clearance

The Security Code function allows for the encryption of microSD cards, fully protecting your files. AES-256 encryption technology ensures the security of data transmission between the remote controller and the aircraft. Additionally, it supports one-click log clearance to prevent information leaks.

Cloud Information Sync for Collaborative Ground and Air Operations

Operators can check live views from the Zenmuse H30 Series through the cloud platform on DJI FlightHub 2 to stay up to date with on-site dynamics. This enables rapid remote command and facilitates coordinated air-to-ground operations.

Application Scenarios

With DJI Enterprise flight platforms, the Zenmuse H30 Series is suited for applications in a range of industries, such as public safety, electricity, oil and gas, water conservation, and forestry.

Public Safety

Electricity

Oil and Natural Gas

Water Conservation

Forestry

* Before using a Zenmuse H30-Series payload for the first time, activate it using the DJI Pilot 2 app.
** All data on this page was measured using a production model Zenmuse H30-Series payload in a controlled environment. Actual experience may vary depending on the environment, usage, and firmware version.
*** All videos and images on this page were shot using the Zenmuse H30 Series by professionals in strict compliance with local laws and regulations and have undergone varying degrees of editing in post-production. All videos and images are for reference only. Actual results may vary. Always observe local laws and regulations and ensure the aircraft has obtained relevant certifications and airspace authorizations before flying.
**** All images, videos, and screen display content regarding the product itself on this page are for reference only. Actual product effects (including but not limited to appearance, color, and size) and screen display contents (including but not limited to backgrounds, UI, and illustrations) may vary.
    Notes:
  1. An Infrared Density Filter is required to be purchased additionally to enable temperature measurements up to 1600°C.
  2. Comparing the max zoom ratios of the Zenmuse H30 Series and the H20 Series. Data measured in a DJI laboratory.
  3. Comparing the longest measurement distance of the laser range finders of the Zenmuse H30 Series and the H20 Series. Data measured in a DJI laboratory.
  4. Data measured in a DJI laboratory. The measurement range may vary based on the material and shape of the tested object as well as the impact of gimbal angle, environmental light, and weather conditions such as rain or fog. If a laser pulse hits multiple targets, its energy is dispersed, which may reduce the measurable distance.
  5. IR Light and NIR Illumination are supported only when using the zoom camera. NIR Illumination will only activate after takeoff. If the NIR auxiliary light is enabled first, IR Light will also start simultaneously.
  6. Comparing the infrared thermal camera resolutions of the Zenmuse H30 Series and the H20 Series. Data measured in a DJI laboratory.
  7. The UHR Infrared Image feature should be enabled in advance. The function turns off when the Night Scene mode is enabled.
  8. Temperature measurement is not supported when the High-Res mode is used on the infrared thermal camera.
  9. Sold separately.
  10. Comparing the highest measurable temperatures of the infrared thermal cameras of the Zenmuse H30 Series and H20 Series. Data measured in a DJI laboratory.
  11. Night Scene mode and ‌Electronic Dehazing cannot be used at the same time.
  12. Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.

General
Product NameZenmuse H30 Series
Dimensions170×145×165 mm (L×W×H)
Weight920±5 g
Power
  • H30: 26 W
  • H30T: 28 W
Ingress Protection RatingIP54

Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.
Supported Aircraft
  • Matrice 300 RTK (requires DJI RC Plus)
  • Matrice 350 RTK
Environment
Operating Temperature-20° to 50°C
Storage Temperature-20° to 60°C
Gimbal
Stabilization System3-axis (tilt, roll, pan)
Angular Vibration Range
  • Hover: ±0.002°
  • Flight: ±0.004°
MountingDetachable DJI SKYPORT
Mechanical Range
  • Tilt: -132.5° to +73°
  • Roll: ±60°
  • Pan: ±328°
(Structural limit, not controllable range)
Controllable Range
  • Tilt: -120° to +60°
  • Pan: ±320°
Operation ModeFollow/Free/Re-center
Zoom Camera
Sensor1/1.8-inch CMOS, Effective Pixels: 40 MP
Lens
  • Actual Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm)
  • Aperture: f/1.6-f/5.2
  • DFOV: 66.7°-2.9°
Focus ModeMF, AFC, AFS
Exposure ModeManual, Auto
Exposure Compensation±3.0 (1/3 increments)
Metering ModeSpot Metering, Average Metering
AE LockSupported
Electronic Shutter Speed1/8000-2 s
ISO Range
  • Single Shot: 100-25600
  • Night Scene: 100-819200
Video Resolution
  • Single Shot: 3840×2160@30fps, 1920×1080@30fps
  • Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
Video FormatMP4
Video SubtitlesSupported
Video Codec and Bit Rate Strategy
  • H.264, H.265
  • CBR, VBR
Max Photo Size7328×5496, 3664×2748
Photo FormatJPG
Wide-Angle Camera
Sensor1/1.3-inch CMOS, Effective Pixels: 48 MP
Lens
  • Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm)
  • Aperture: f/1.7
  • DFOV: 82.1°
Focus ModeMF, AFC, AFS
Exposure ModeManual, Auto
Exposure Compensation±3.0 (1/3 increments)
Metering ModeSpot Metering, Average Metering
AE LockSupported
Electronic Shutter Speed1/8000-2 s
ISO Range
  • Single Shot: 100-25600
  • Night Scene: 100-409600
Video Resolution
  • Single Shot: 3840×2160@30fps, 1920×1080@30fps
  • Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
Video FormatMP4
Video SubtitlesSupported
Video Codec and Bit Rate StrategyH.264, H.265
CBR, VBR
Max Photo Size8064×6048, 4032×3024
Photo FormatJPG
Infrared Thermal Camera (H30T)
Thermal ImagerUncooled VOx Microbolometer
Lens
  • Focal Length: 24 mm (equivalent focal length: 52 mm)
  • Aperture: f/0.95
  • DFOV: 45.2°
Digital Zoom Equivalent32×
Video Resolution1280×1024@30fps
Video FormatMP4
Video SubtitlesSupported
Video Codec and Bit Rate Strategy
  • H264, H265
  • CBR, VBR
Photo Resolution1280×1024
Photo FormatR-JPEG
Pixel Pitch12 μm
Spectral Band8-14 μm
Noise Equivalent Temperature Difference (NETD)≤ 50 mk@f/1.0
Temperature Measurement MethodSpot Measurement, Area Measurement, Center Point Temperature Measurement
Temperature Measurement Range
  • High Gain: -20° to 150°C, -20° to 450°C (With Infrared Density Filter)
  • Low Gain: 0° to 600°C, 0° to 1600°C (With Infrared Density Filter)
Temperature AlertSupported
Sun Burn ProtectionSupported
FFCAuto, Manual
PaletteWhite Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron
Laser Range Finder
Wavelength905 nm
Measurement Range
  • 3-3000 m
  • Range for Common Objects: Grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m*
The measurement range may vary based on the material and shape of the tested object as well as the impact of gimbal angle, environmental light, and weather conditions such as rain or fog. If a laser pulse hits multiple targets, its energy is dispersed, which may reduce the measurable distance.
* Test conditions: Flat surface subject, subject size exceeding the laser beam diameter, atmospheric visibility of 23 km (shorter range in clear conditions compared with overcast), laser impinges at an oblique angle (with an angle of incidence of approx. 0.2 radians).
Measurement Accuracy
  • ≤ 500 m: ±(0.2 m+measurement distance×0.15%)
  • > 500 m: ±1.0 m
Laser Spot Size
  • @100 m: approx. 50×450 mm
  • @1000 m: approx. 450×4500 mm
Safety Regulation LevelClass 1
Accessible Emission Limit (AEL)260 nJ
Reference Aperture18 mm
Max Laser Pulse Emission Power Within 5 Nanoseconds52 W
NIR Auxiliary Light
Wavelength850 nm
FOV4.6±0.6° (Round)
Safety Regulation LevelClass 1
Illumination Range@100 m: Approx. 8m diameter circle
Special Features
Hybrid Optical Zoom34×
Max Zoom400×
Link ZoomSupported
Click to AimSupported
High-Res Grid PhotoSupported
Night SceneSupported
TimestampSupported
Smart CaptureSupported
Video Pre-RecordingSupported
UHR Infrared ImageSupported
Data Storage
Supported microSD CardsU3/Class10/V30 or above is required, or use a memory card from the recommended list.
Supported File SystemexFAT
Recommended microSD Cards
  • SanDisk Extreme Pro V30 A1 32GB microSDHC
  • Lexar 1066x V30 A2 64GB/128GB/256GB/512GB microSDXC
  • Kingston CANVAS GO! Plus V30 A2 64GB/128GB/256GB/512GB microSDXC
Zenmuse H30 supports the Security Code function. Go to Data and Privacy in DJI Pilot 2 and set the code to encrypt the microSD card installed on the camera. Download the DJI Decrypt Tool from the DJI official website to decrypt the microSD card on a Windows computer and access the card content.
Post-Processing Software
Mapping SoftwareDJI Terra, DJI FlightHub 2
Infrared Analysis SoftwareDJI Thermal Analysis Tool 3
