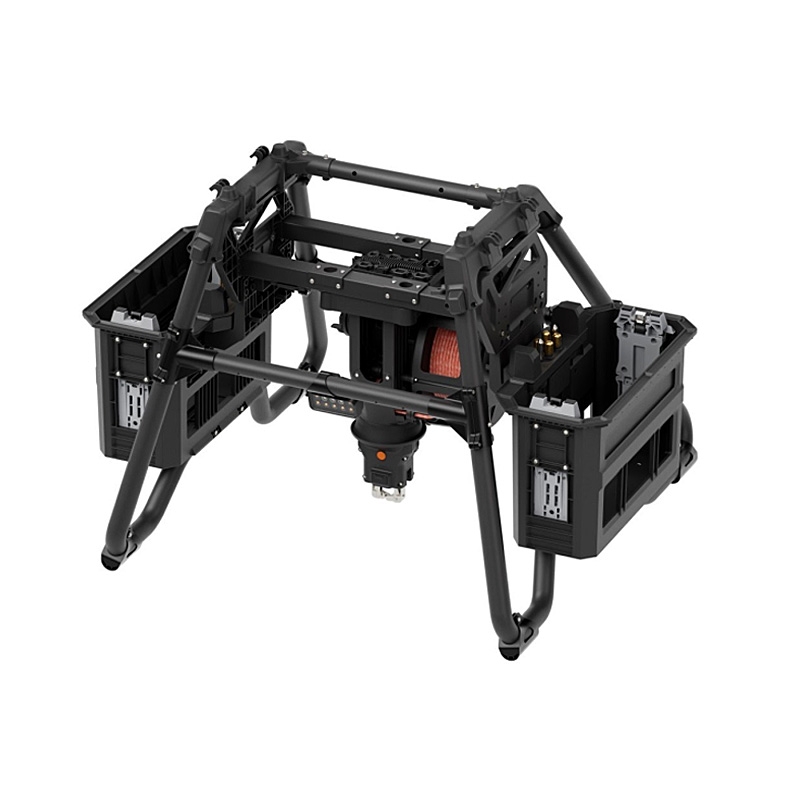

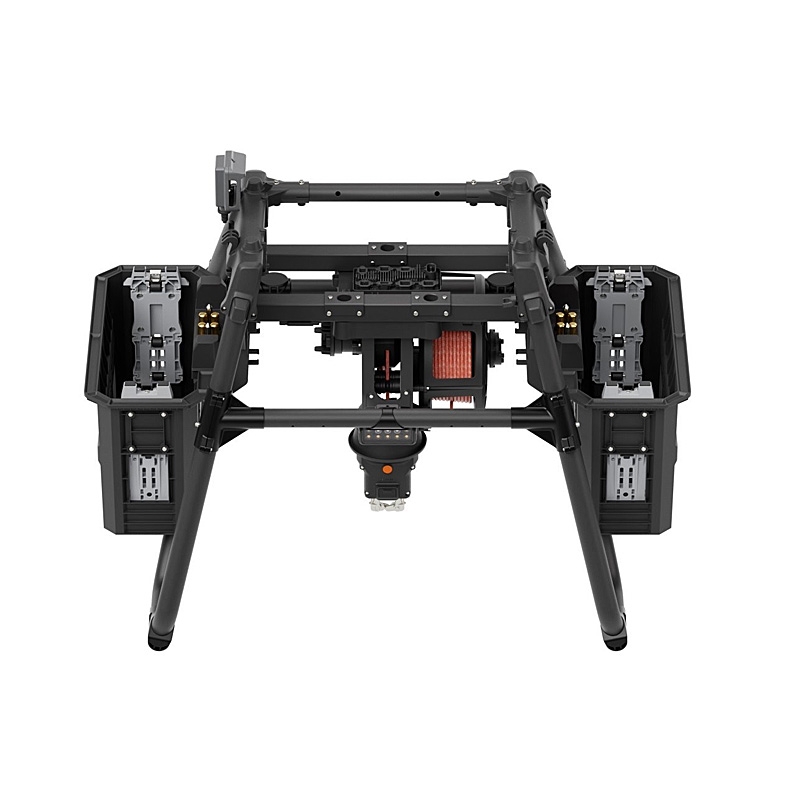

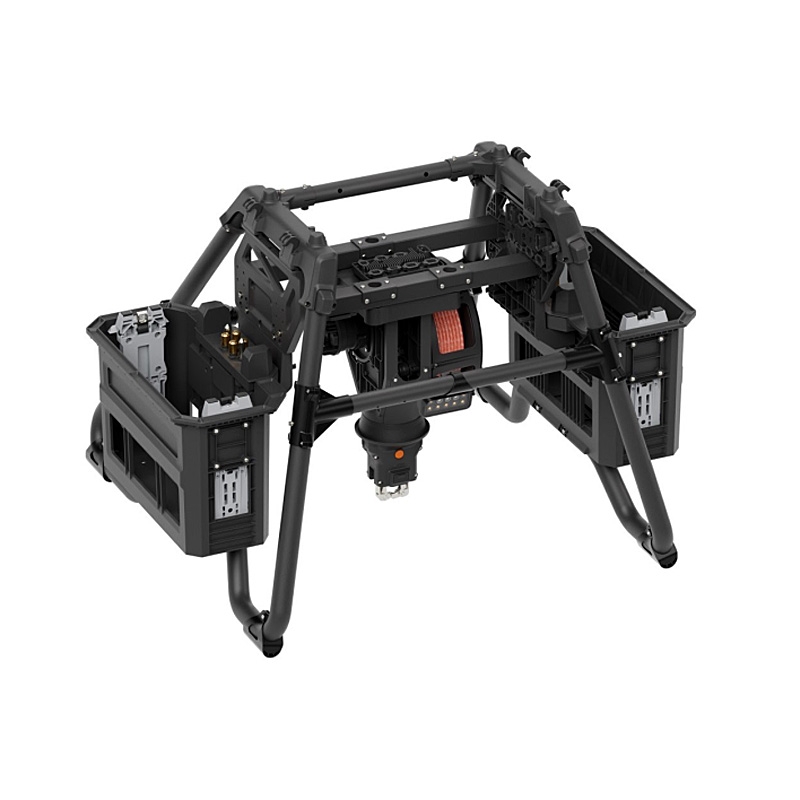

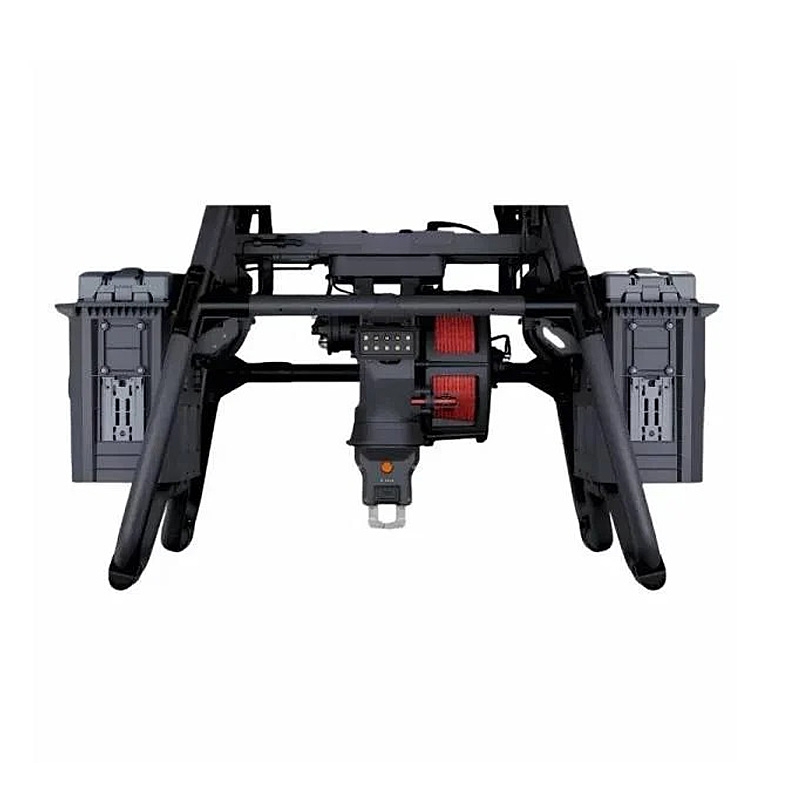

DJI FlyCart 100 Flagship Winch System

The DJI FlyCart 100 Flagship Winch System revolutionizes delivery and retrieval operations without the need for landing. Designed for industrial logistics, emergency interventions, and missions in remote areas, this advanced winch system allows for precise load lowering and recovery, enhancing the operational flexibility of the DJI FlyCart 100 (FC100).

Features:

  • High-Speed Release and Recovery: The winch manages load descent and ascent in both automatic and manual modes, adapting to various operational scenarios. With a retraction speed of up to 1.2 m/s, even under heavy loads, it minimizes cycle times and boosts productivity.
  • Safer Ground Delivery: Position your load accurately without landing, reducing risks in tight, uneven, or hazardous areas, and simplifying deliveries in challenging environments.
  • Automatic Balance Control: The auto-balancing feature maintains drone stability during load lowering and recovery, enhancing flight safety and ensuring smoother handling of suspended loads.
  • Emergency Cable Release: In case of blockage, obstacles, or entanglement, the quick-release function allows for immediate line liberation, enabling the aircraft to safely ascend and reduce operational risk.

More details

More info

DJI FlyCart 100 Flagship Winch System
ModelA2EWH-100A
Dimension960 mm × 805 mm × 669 mm
Hook charge MethodWireless charge, Type-C charge

Wireless charge requires the hook to be fully tightened.
Hook Supply Power Time10 hours

Measured in an ideal windless environment at sea level at 25°C. Results may vary to different degrees under different external environments, usage patterns, and firmware versions. Please refer to app prompts during actual use.
Cable Length0-30 meters
Max Retraction Speed1.2 m/s
Weighing functionSupported
Hook opening and closing functionSupports active control via APP or button
Emergency escape ModeCable Discard Escape
Auto Blance ControlSupported
Manual wheel control for retractionSupported
One-tap release and RetractionSupported
Intelligent Deceleration ProtectionSupported
