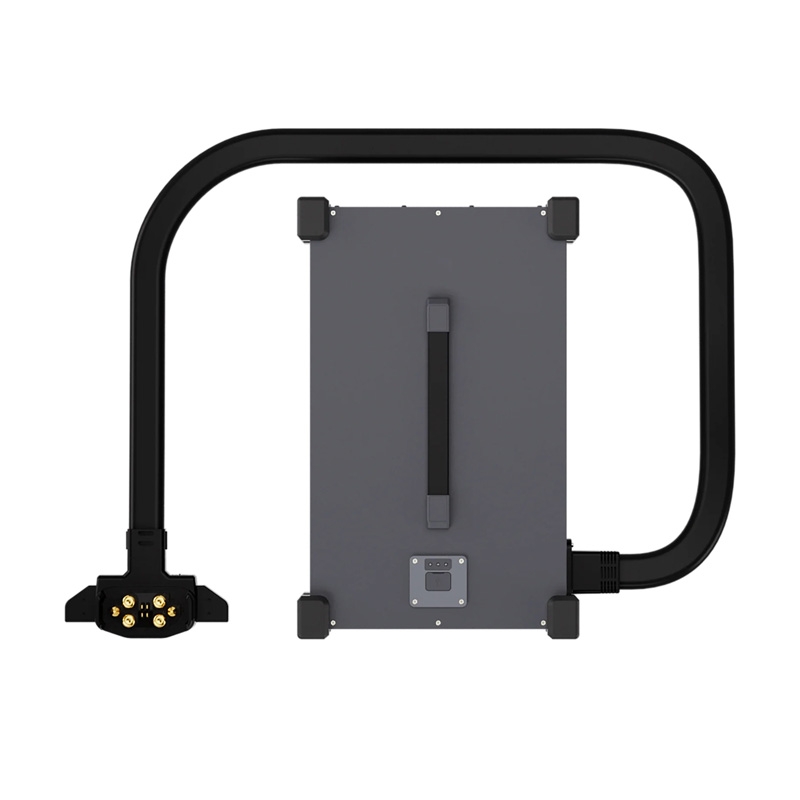

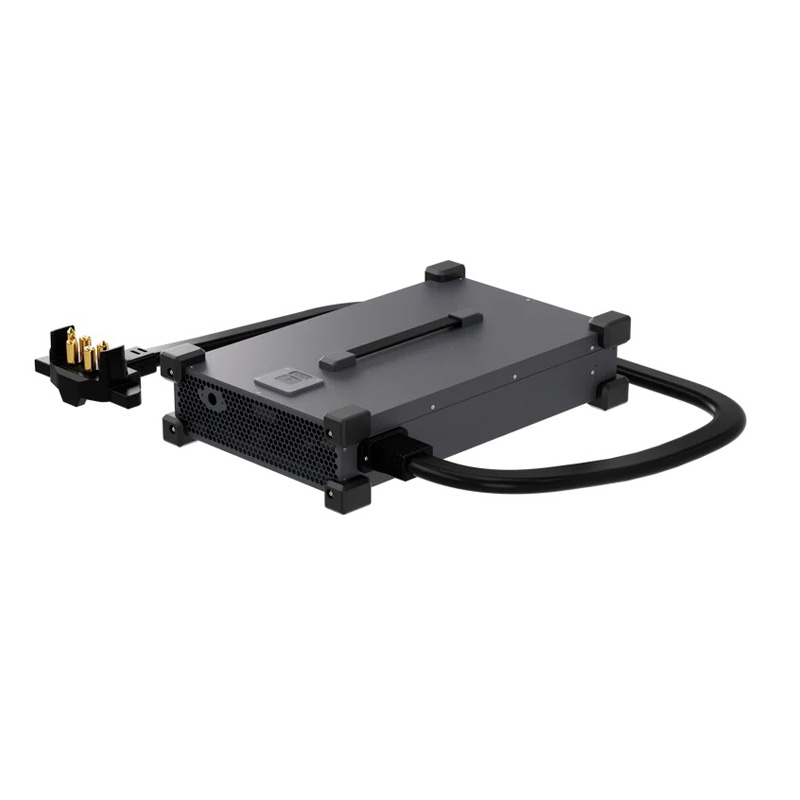

New C12000 Intelligent Power Supply View larger

DJI C12000 Intelligent Power Supply

Features:

  • Lightning-Fast Charging. With up to 12 kW of output, the C12000 can charge a DB2160 battery from 30% to 95% in just 8–9 minutes.
  • Versatile Power Options. Whether you have access to three-phase or standard single-phase power, the C12000 adapts to your setup.
  • Smart & Safe. Advanced protection against over-voltage, overheating, and short circuits gives you peace of mind while your batteries recharge.
  • Field-Ready Design. A quick release handle allows for single handed removal of the battery.

Compatibility:

More details

More info

C12000 Intelligent Power Supply
Charger ModelCSX901-12000
Dimensions456 mm × 291 mm × 107 mm
Weight13.13 kg
Input Voltage
  • Three-phase AC input: 175 - 520 V
  • Single-phase AC input: 200 - 264 V
Output Voltage62 V
Rated output current194 A
Rated Power12000 W (three-phase 380 V input) 3000 W (single-phase 220 V input)
Recharge Time8 - 9 minutes (DB2160 Intelligent Flight Battery, 30% - 95% charge)
Protection functionsOver-temperature, over-voltage, under-voltage, short circuit, fan stall, and other protection functions
Operating Temperature0° to 40°C
Output Channels1
Compatible with Intelligent Flight BatteryDB1580 / DB2160 Intelligent Flight Battery
