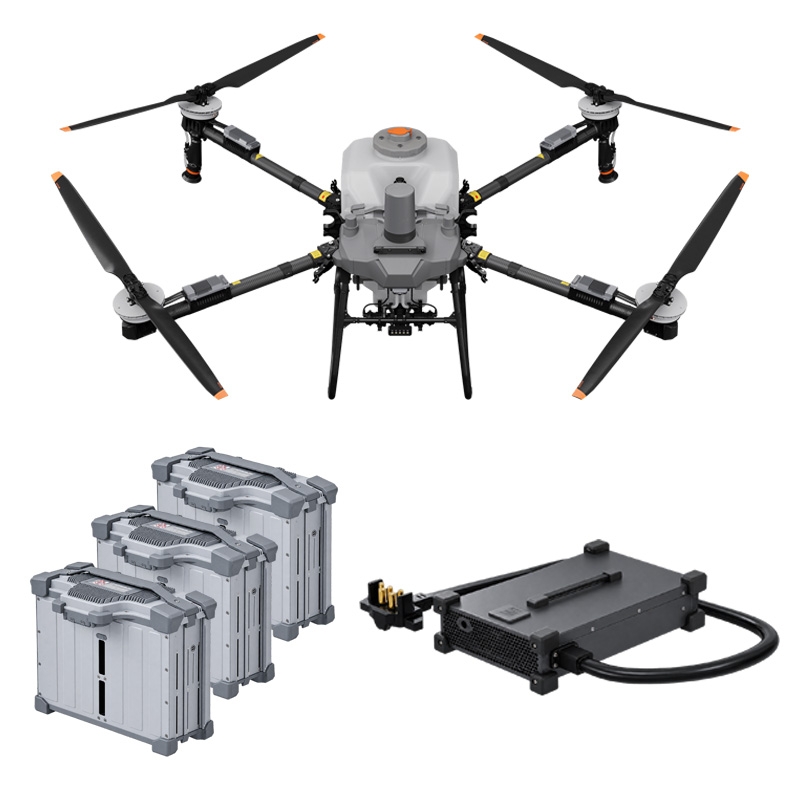

DJI Agras T70P Agriculture Drone with 3 Batteries and Charger C12000
Out of Stock
Features:
- 70 L Spraying Tank[1], 40 L/min Flow Rate
- 100 L Spreading Tank[1], 400 kg/min Flow Rate[4]
- Obstacle Avoidance
AR Enhanced Display - 20 m/s Max Operation Speed[6]
- 65 kg Lifting[5]
- Ultra-Fast Charging
More info

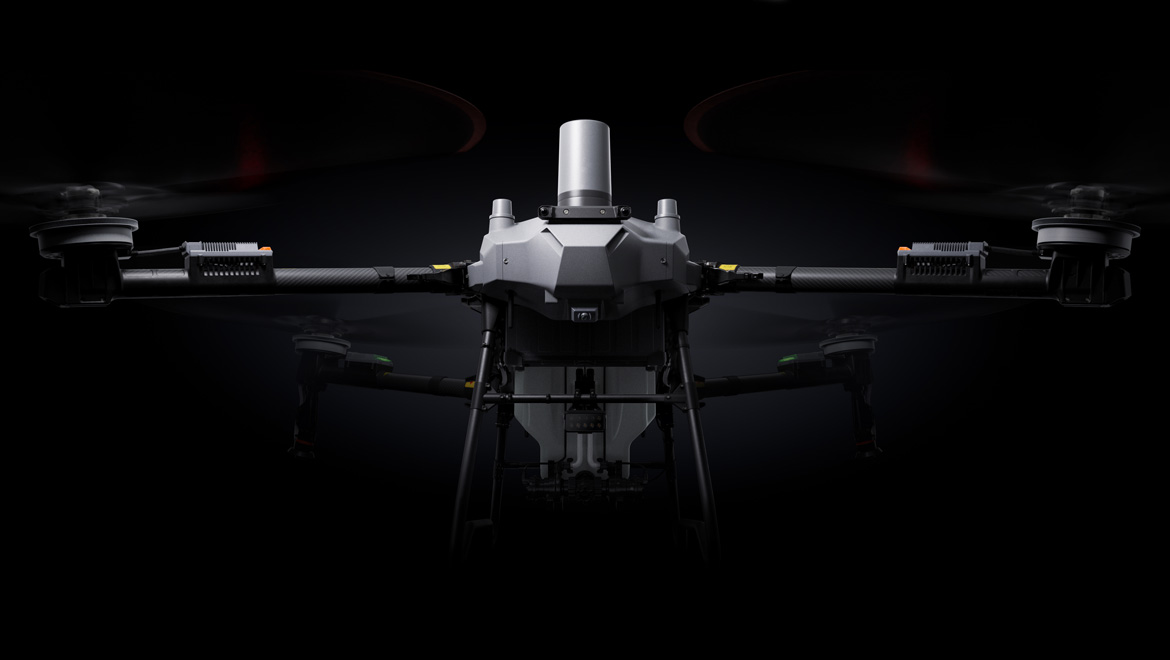

DJI Agras T70P
Efficiency Expert

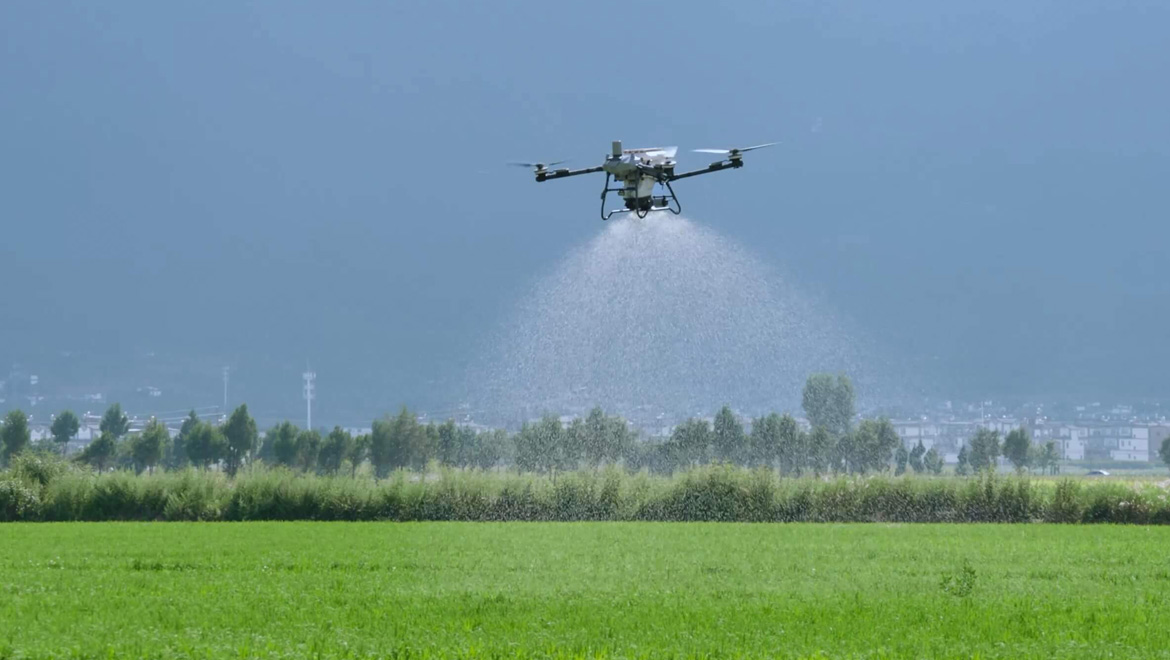

Spraying System
Efficient Operation, Outstanding Performance
The T70P comes equipped with a 70 L tank and dual atomization centrifugal sprinklers, offering high flow rates for faster flight speeds and greater operational efficiency in field applications. Orchard users can choose an optional mist sprinkler set, which upgrades both flow rate and atomization effects, ensuring thorough penetration even through dense canopies and tall plants.
Field Operations
20%
Increase in Operation Efficiency[7]
30L /min
High Flow Rate
20m/s
Maximum Flight Speed[6]
4 -11m
Effective Spray Width[9]
Orchard Operations
40L /min
Four Sprinklers (Optional)
65%
Increase in Penetration and Leaf Underside Coverage[7]
Water-Cooled Mist Sprinklers (Optional)
Fine droplets as small as 50 μm [23]penetrate canopies effectively, ensuring thorough leaf coverage. The newly designed liquid flow path rapidly dissipates heat generated by dual centrifugal motors, enhancing durability and extending the system's lifespan.

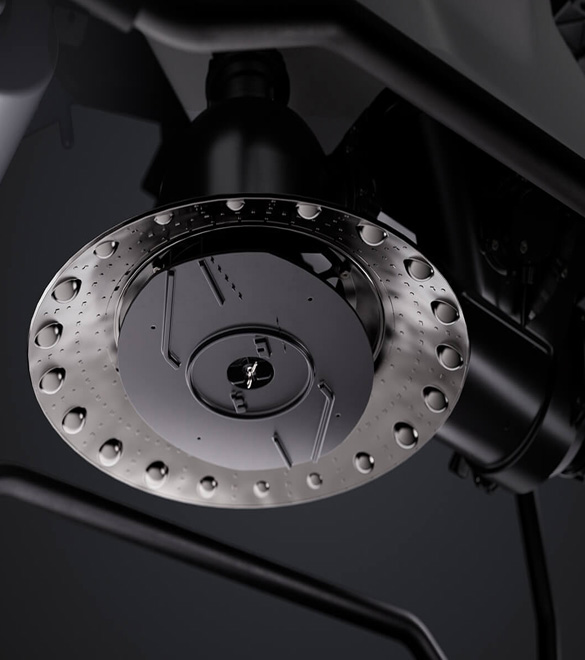

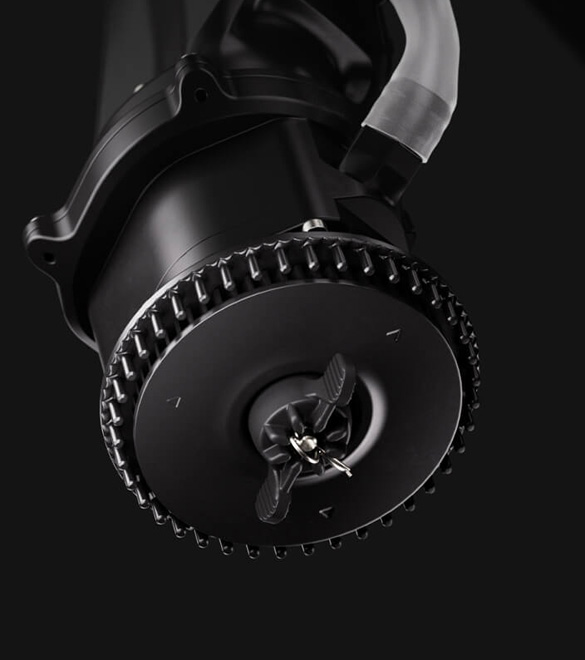

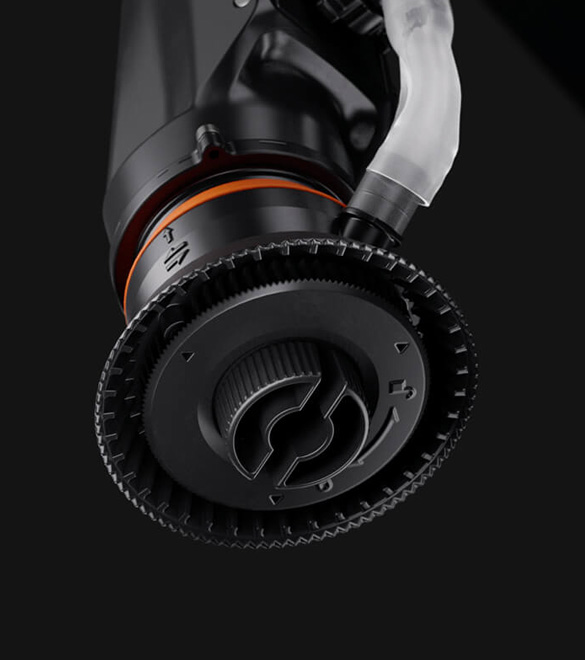

Dual Atomization Centrifugal Sprinklers
New flow path design, dual spinklers support a maximum flow rate of 30 L/min, Particle size range of 50-500 μm[8], suitable for most operational scenarios.

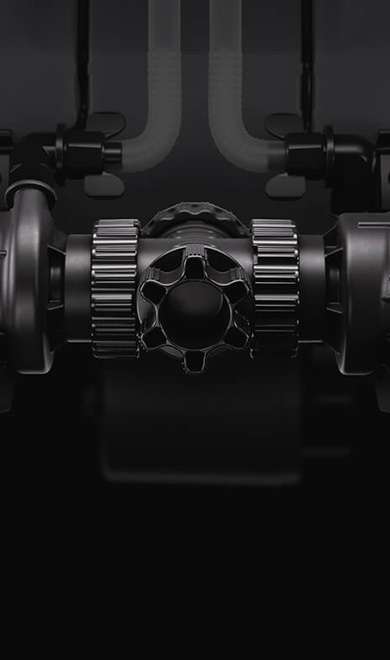

Magnetic Drive Impeller Pumps
Corrosion-resistant, stable, and reliable, an optimized impeller structure and increased chamber volume meet the high flow demands of orchard scenarios.

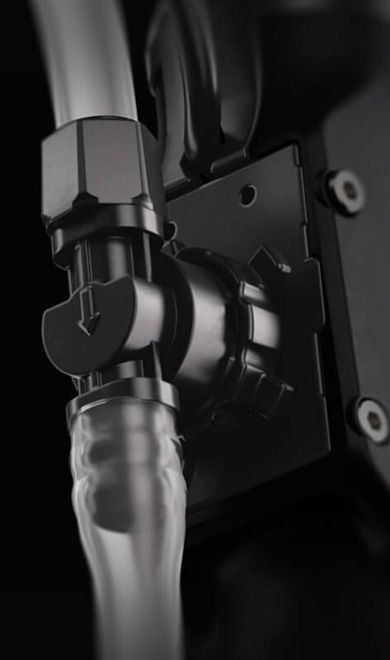

Solenoid Valves
Precision starting and stopping eliminates leaking.

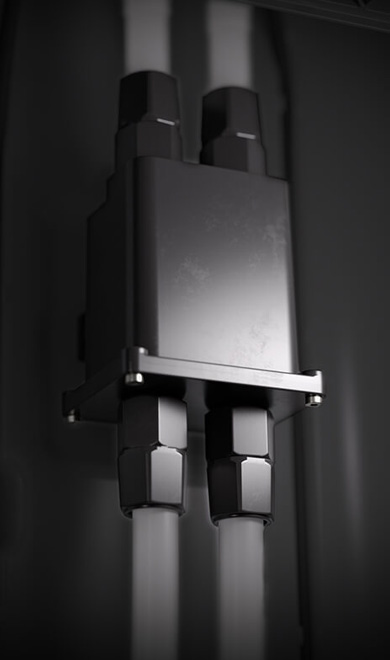

Dual-Channel Electromagnetic Flow Meter
Real-time precise flow detection and dynamic control ensures high-precision operations. It avoids direct contact with the liquid, preventing corrosion and enhancing durability.
Spreading System
Outstanding Efficiency and Performance
The T70P features a new spreading system with a larger payload and capacity, delivering a 270% increase in spreading flow rate [7] for significantly improved efficiency. Equipped with a new screw feeder, it supports a wide range of granulars and excels in diverse scenarios, including fields, orchards, and aquaculture.
100L(70 kg)
Large Capacity Spreading Tank[10]
400 kg/min
High Flow Rate[4]
10 m
Effective Spreading Width[11]
0.5-10 mm
Granule Size Range[12]

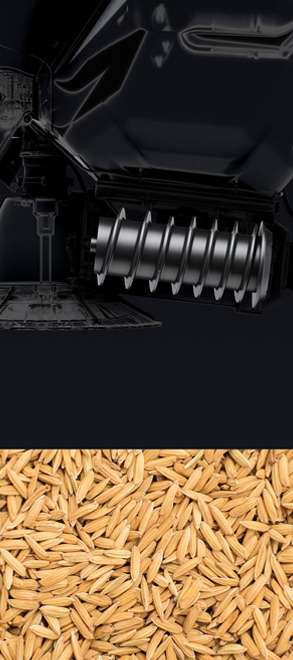

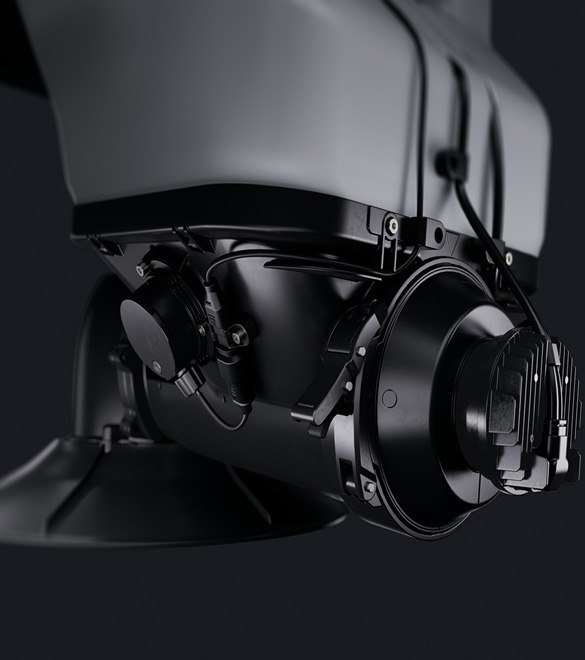

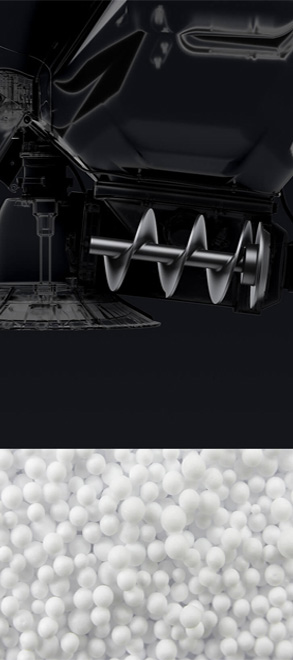

Brand-New Screw Feeder
Spreading accuracy doubled, flow rate increased by 270%[7], and granulars applicability further enhanced.

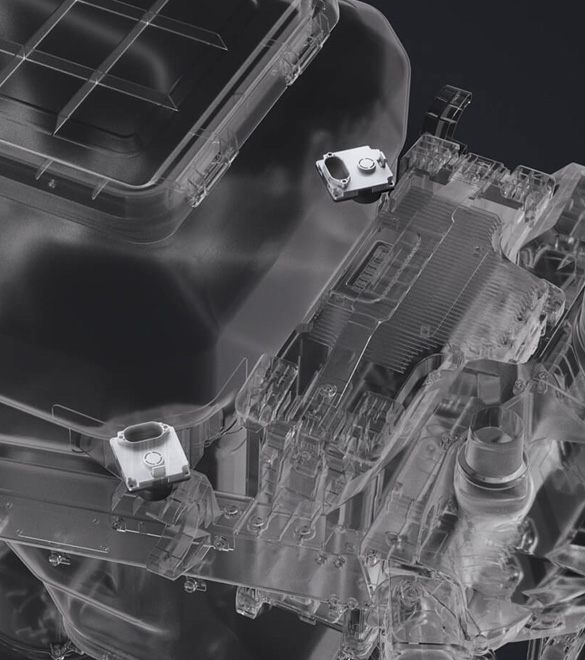

High-Precision Weighing Sensor
Provides real-time, accurate display of granular quantity, allowing for precise usage and refilling, effectively minimizing waste. Automatic flow rate calibration and cloud-save operation templates, making spreading operation more accurate and convenient.

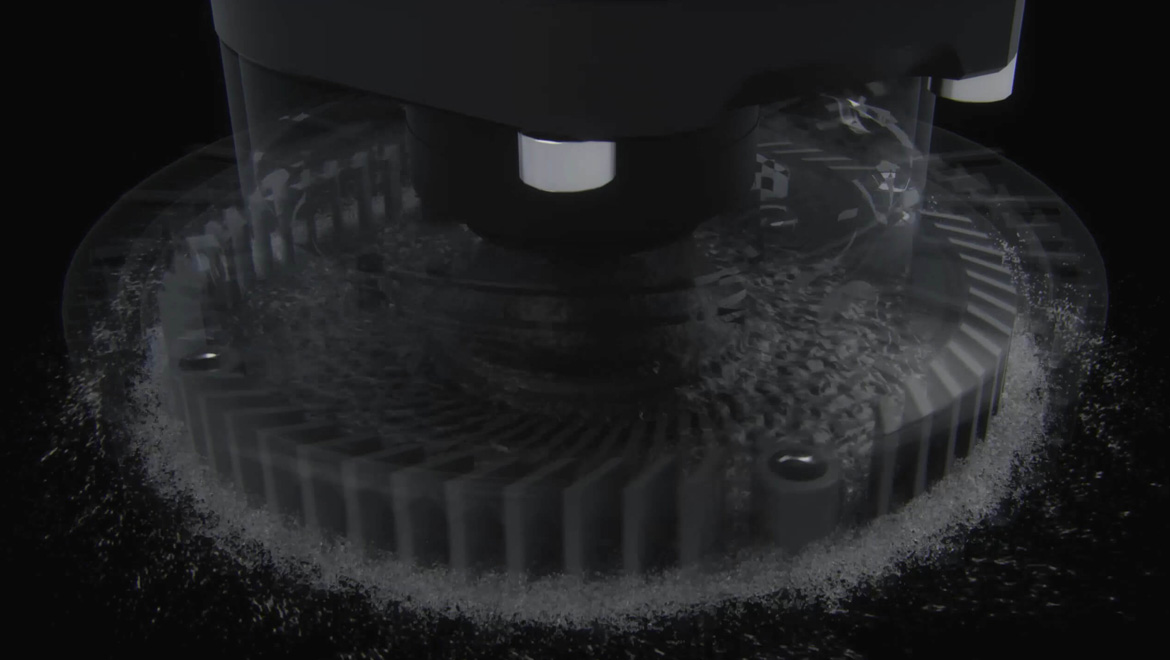

Centrifugal Spreader Disc
Ensures uniform spreading across the entire flow range with outstanding results. Features a stainless steel cap for durability and strength.

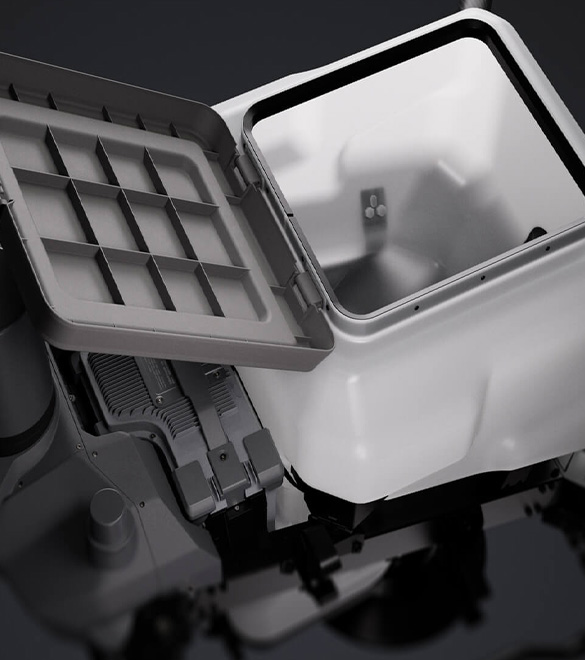

Large Loading Gate
Allows for easy and convenient bulk loading.
Four Feeder Types
Supports four interchangeable feeder sizes for precise flow and greater adaptability[11] across seeding, fertilizing, and feeding.

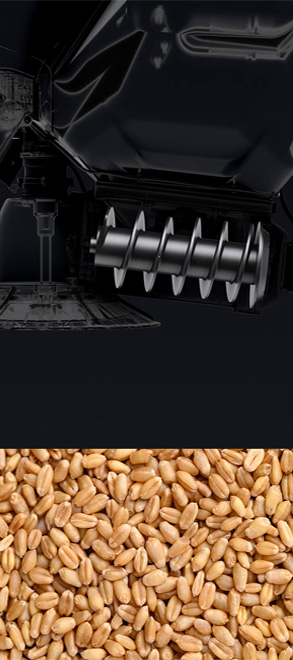

Extra-Large Feeder
Suitable for granulars such as fertilizers, wheat seeds, granular fungicides, feed, etc.
Recommended application rate: 75-750 kg per hectare.
Recommended particle size: 0.5-10 mm
Large Feeder (Optional)
Suitable for granulars such as rice seeds, cover crop seeds, etc.
Recommended application rate: 75-270 kg per hectare.
Recommended particle size: 4-10 mm
Medium Feeder
Suitable for granulars such as rice seeds.
Recommended application rate: 22.5-120 kg per hectare.
Recommended particle size: 4-6 mm

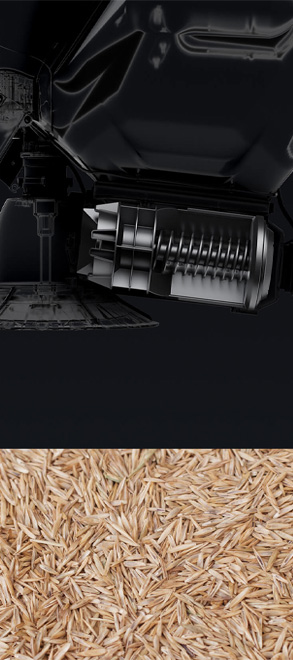

Small Feeder (Optional)
Suitable for granulars such as rapeseed, granular herbicides, grass seeds, granular insecticides, etc.
Recommended application rate: 3-22.5 kg per hectare.
Recommended particle size: 0.5-4 mm.
Safety System[2]
Obstacle Avoidance, AR Enhanced Display
The T70P is equipped with intelligent obstacle avoidance and AR-enhanced display. With Safety System 3.0, its radar and vision systems work together with upgraded algorithms to deliver comprehensive obstacle awareness, enabling smooth navigation and effortless maneuvering through fields.

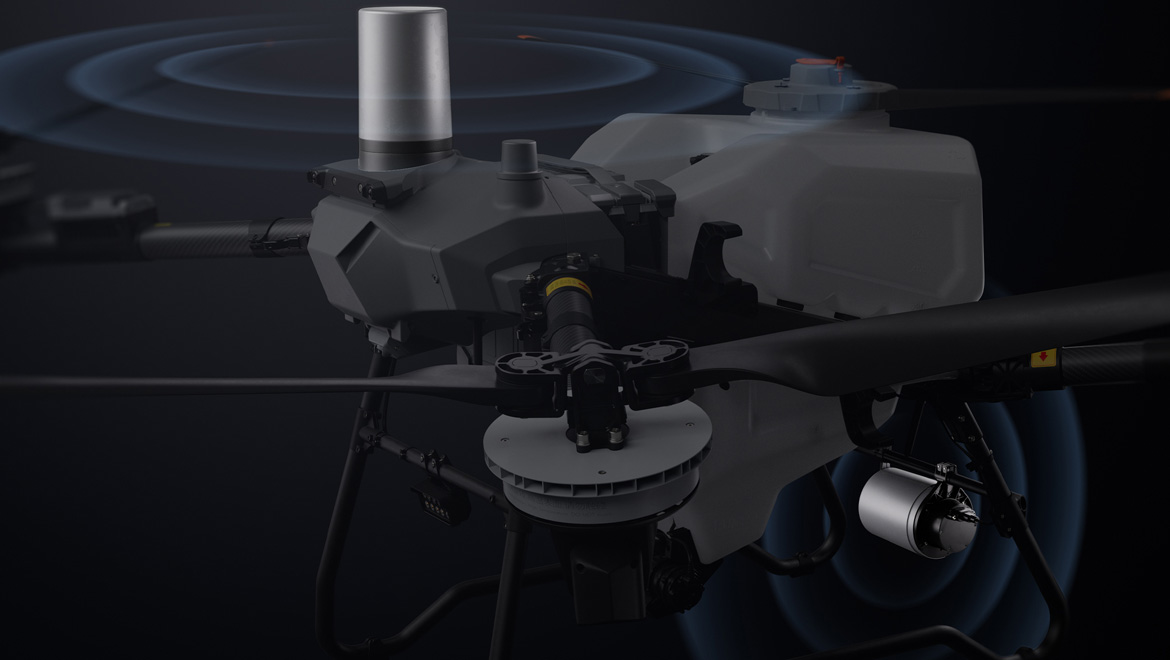

Millimeter-Wave Radar
The front radar performs 5,000 vertical airspace scans per second combined with 360° horizontal mechanical rotation scanning, along with a rear radar, offering a more comprehensive detection range.
Tri-Vision System[13]
Two black-and-white fisheye cameras and an FPV camera work in tandem with radar through visual fusion algorithms to enhance Terrain Following and obstacle avoidance capabilities.

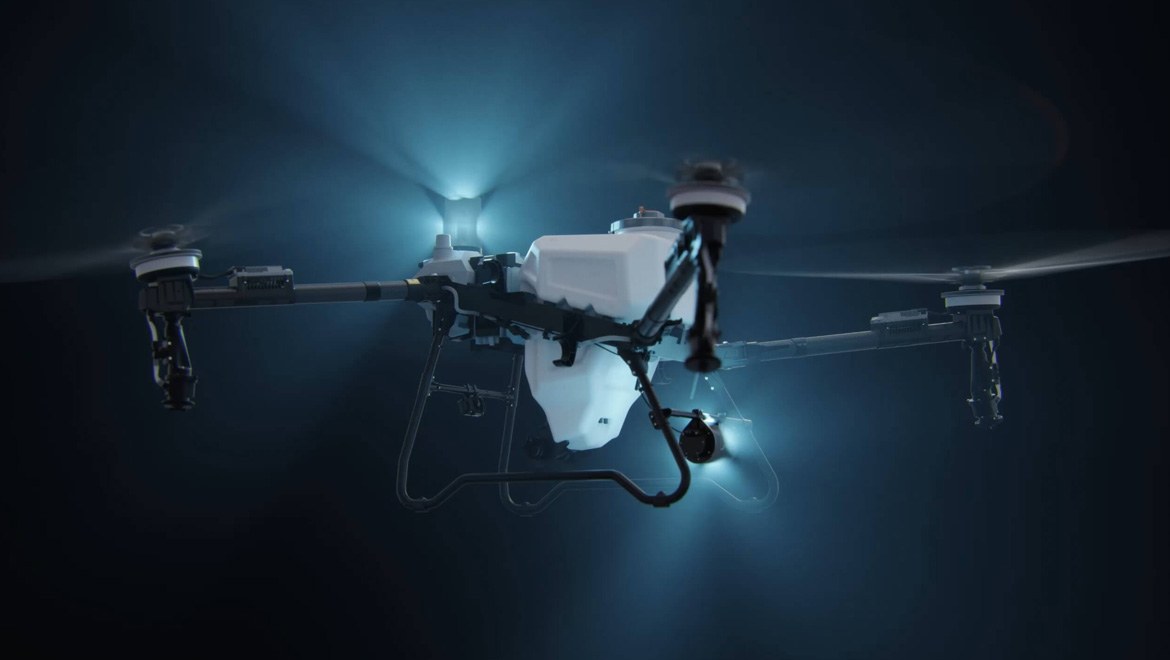

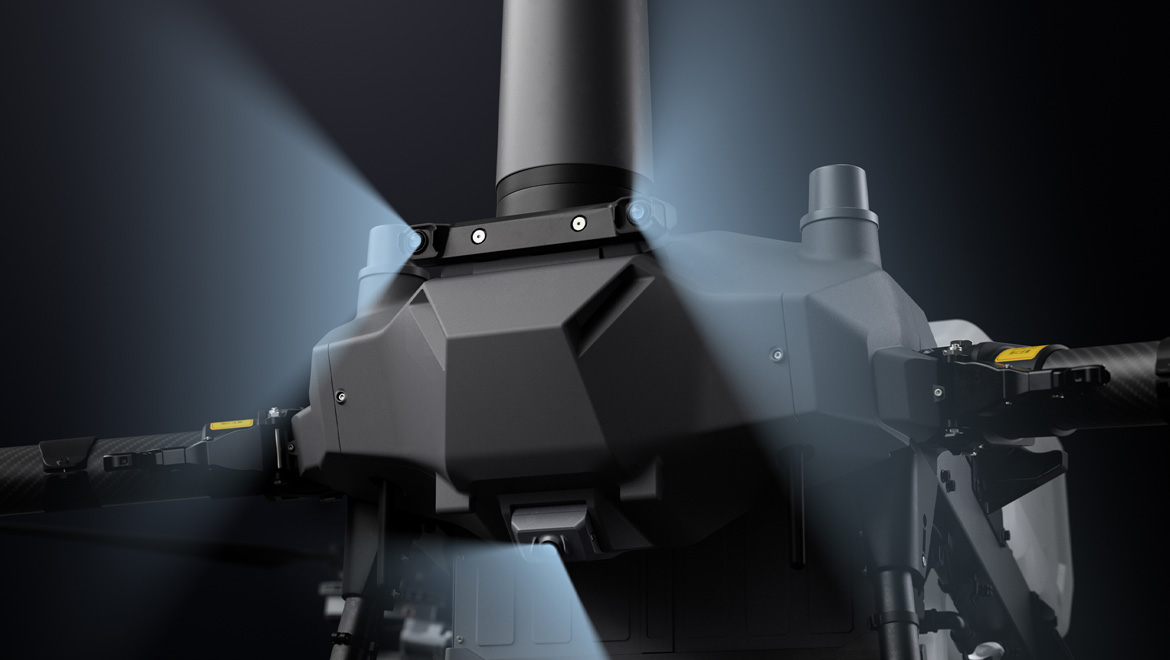

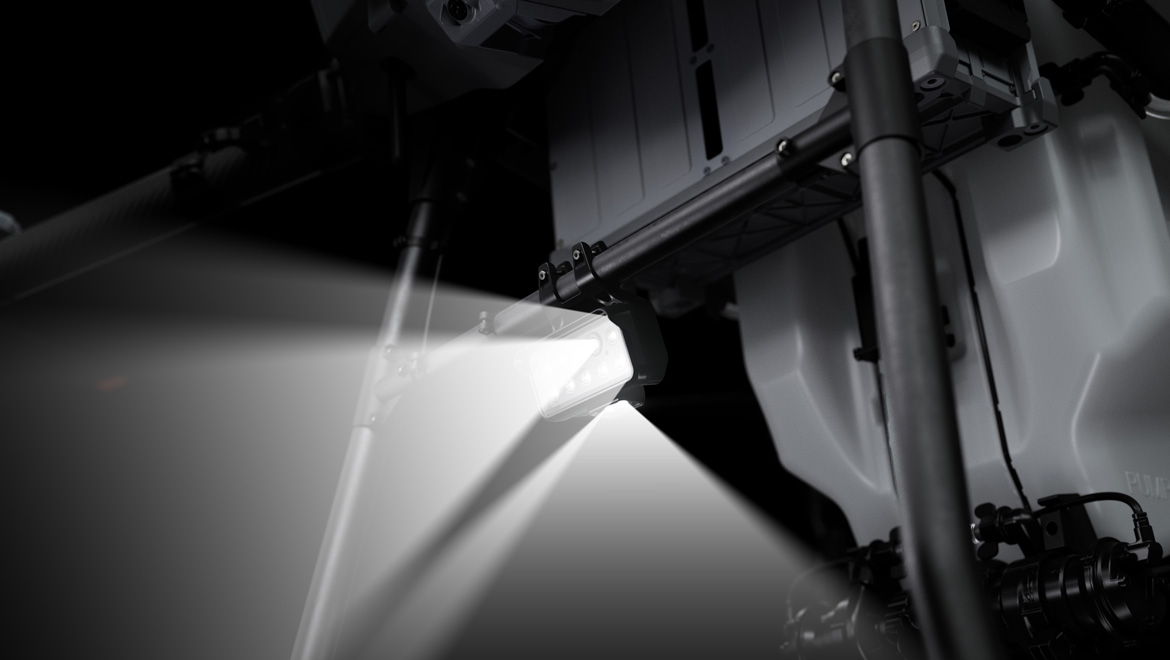

Night Navigation Light
In addition to the existing low beam lights, new front-facing high beams and downward supplemental lighting have been added. The downward lighting automatically activates during landing, ensuring safer nighttime operations.

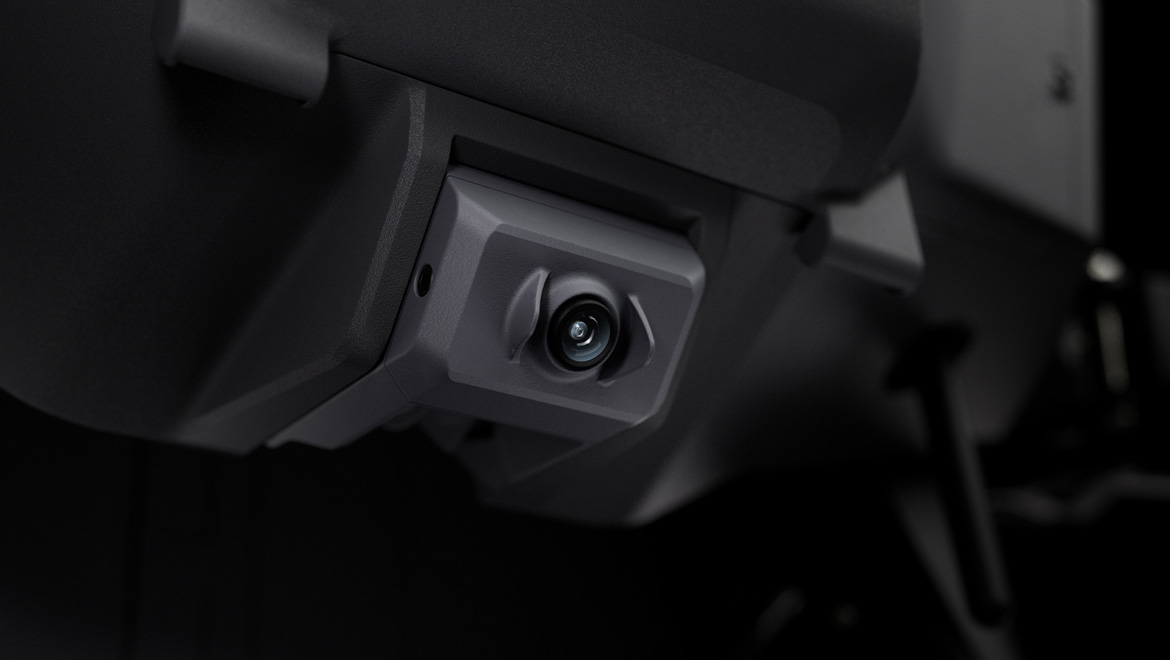

Night Vision Color FPV Camera
Utilizing virtual gimbal technology, the FPV camera's pitch angle can be freely adjusted. It supports night vision mode, and when combined with night navigation lights, obstacles remain clearly visible even in the dark[14].

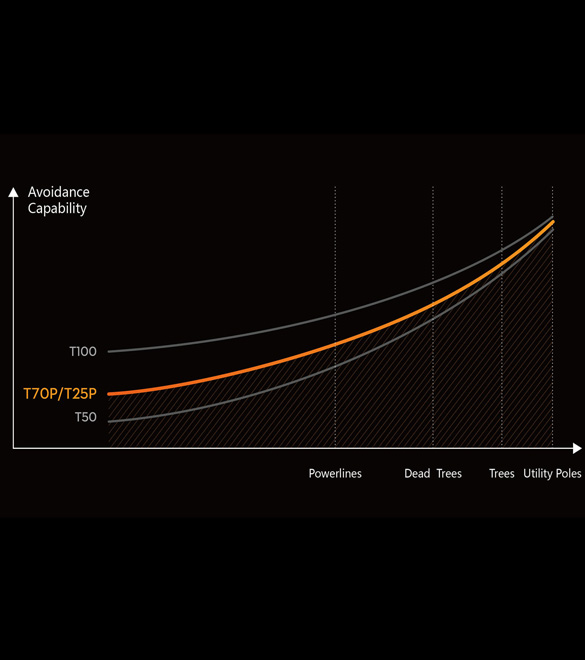

Obstacle Avoidance Capability
Supports 360° horizontal and upward obstacle avoidance, along with steep slope Terrain Following without aerial mapping. The detection rate for diagonal cables and power lines has been improved[2], ensuring all field obstacles are clearly detected.
Intelligent Obstacle Bypassing
The newly upgraded Safety System 3.0 incorporates intelligent detection algorithms, enabling obstacle detection and smarter route selection, significantly improving obstacle clearance rates[7]. Additionally, it features an advanced terrain mapping algorithm that accurately extracts terrain features for high-precision Terrain Following operations in agricultural settings.
Obstacle Type Detection
With more precise detection capabilities and smarter algorithms, obstacle types can be clearly displayed on the remote controller and saved to field information with one click, enhancing flight safety.
AR Safety Assistance[2]
Supports AR Display for Utility Pole, Vehicles, and Obstacles during takeoff and landing, generates AR flight paths during operation, and provides flight trajectory prompts. It also features a safe landing projection to assist with return and landing.
Terrain Following Without Mapping[2]
Navigates mountain slopes up to 90° without the need for aerial mapping, meeting the operational needs of most orchards.
Arm Safety Locks
Automatically detects arm lock status before operation to ensure operational safety.

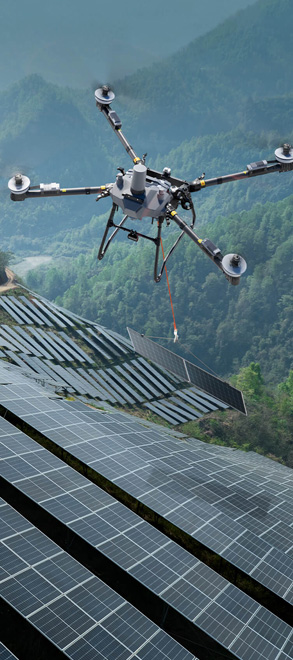

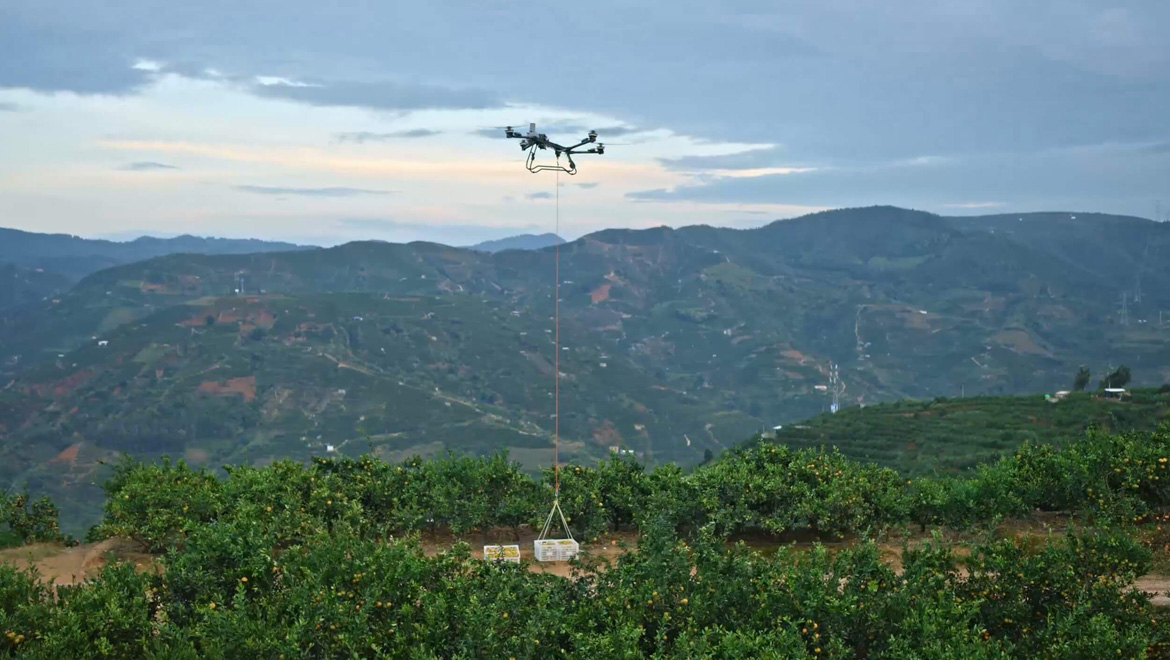

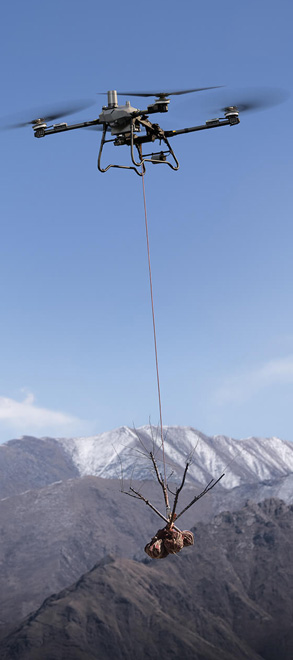

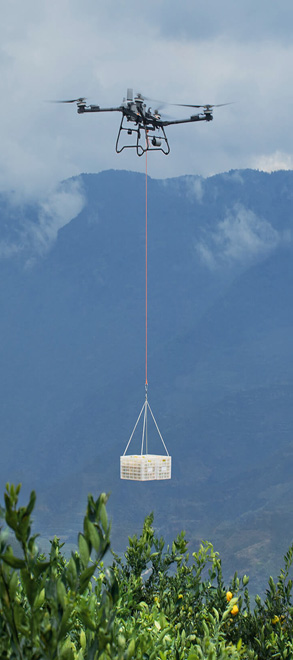

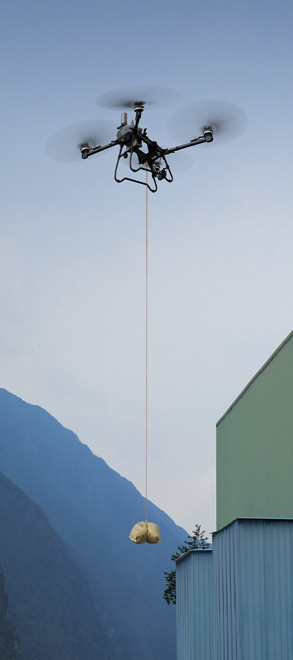

Lift System
Your Transport Assistant
The T70P transforms into a transport solution with a lifting capacity of 65 kg[5] it carries more and travels further. Features like Auto Balance Control, weight detection, and automatic navigation to loading and unloading points make it adaptable to various agricultural transport scenarios.
Solar Panels
Fruits
Building Materials
Saplings
Automatic Balance Control
Utilizing a triaxial force sensor, the drone can automatically adjust its posture during flight to eliminate swinging, ensuring safer operations.
Real-Time Weighing
A triaxial force sensor provides real-time weight monitoring to prevent overloading and ensure operational safety.
Marking Loading and Unloading Points by Mobile
Operators can use their mobile phones, in conjunction with the RTK module, to add load and unload points, which are then synced to the remote controller. Pilots can quickly locate destinations using AR projection on the controller.
Automatic Flight
Freely select loading and unloading points and reach them with a single click.

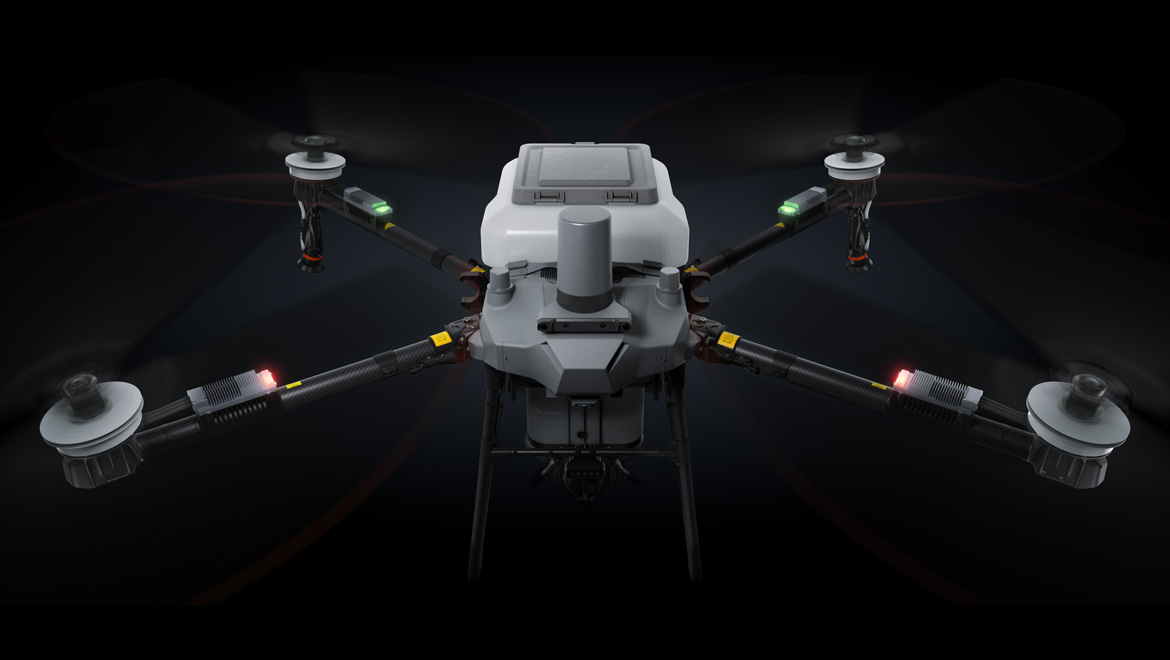

Propulsion System
Powerful Performance, Higher Efficiency
The T70P, through further optimization of the power system, effectively reduces energy consumption while maintaining the same operational area and effectiveness.
20m/s
Max Speed[6]
18%
Enhanced Efficiency[7]
30%
Lower Power, Higher Load[15]

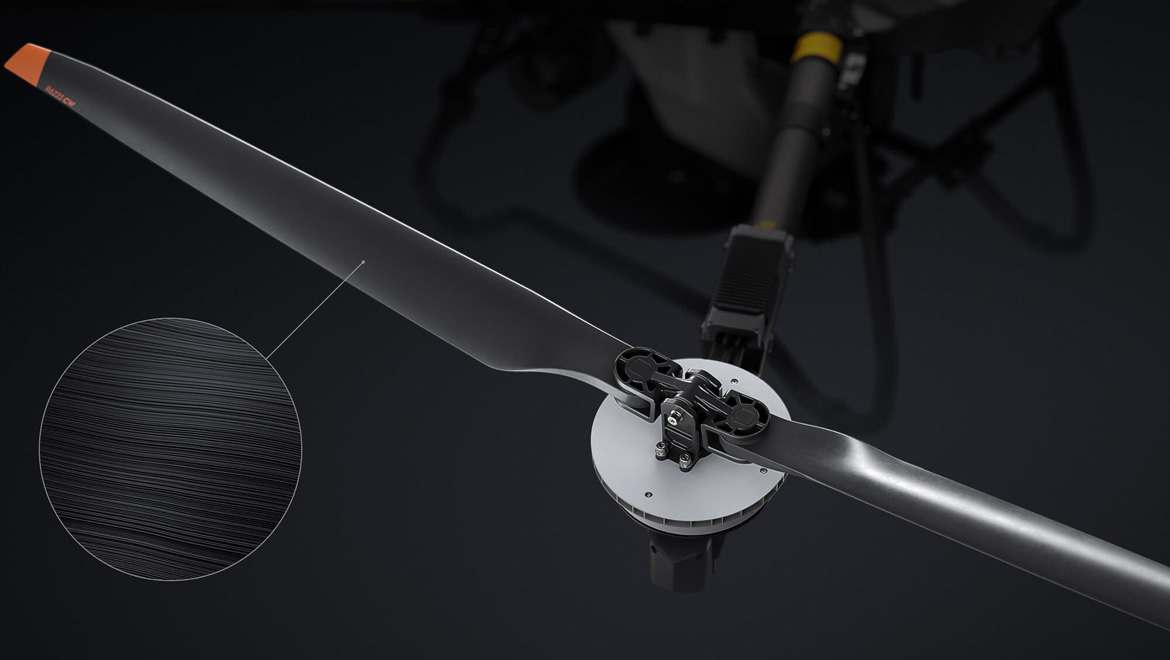

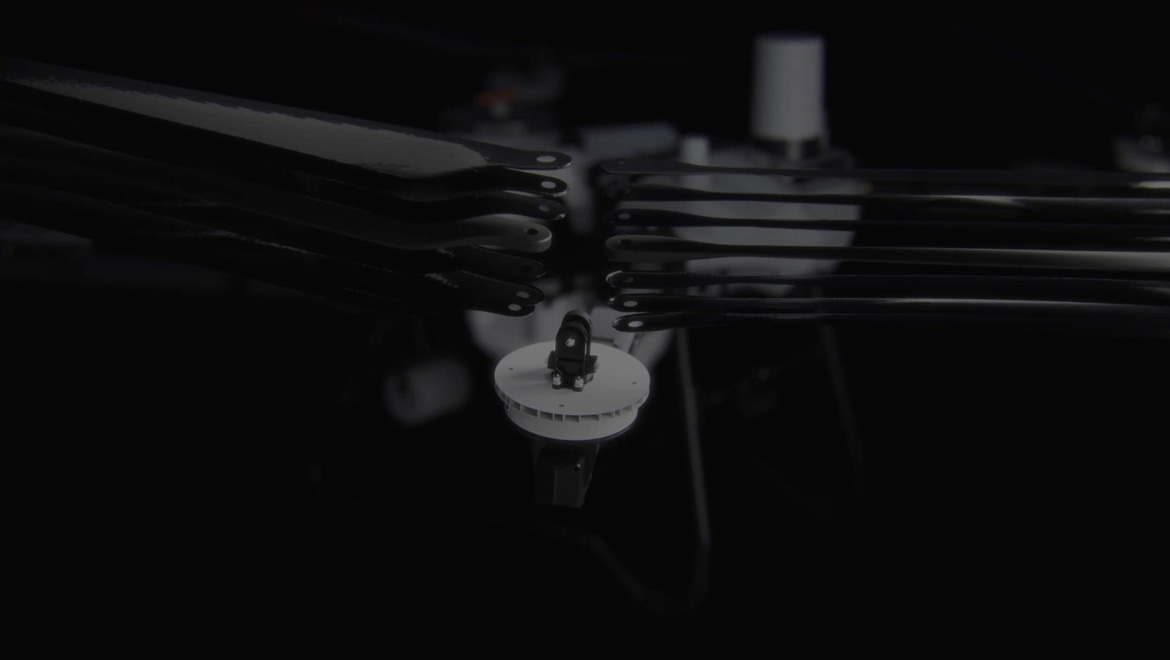

62-Inch Carbon Fiber Propellers
Carbon fiber propellers offer greater rigidity and lighter weight, resisting deformation even at high temperatures. With optimized airfoil and increased diameter, efficiency is improved by 15%[7].

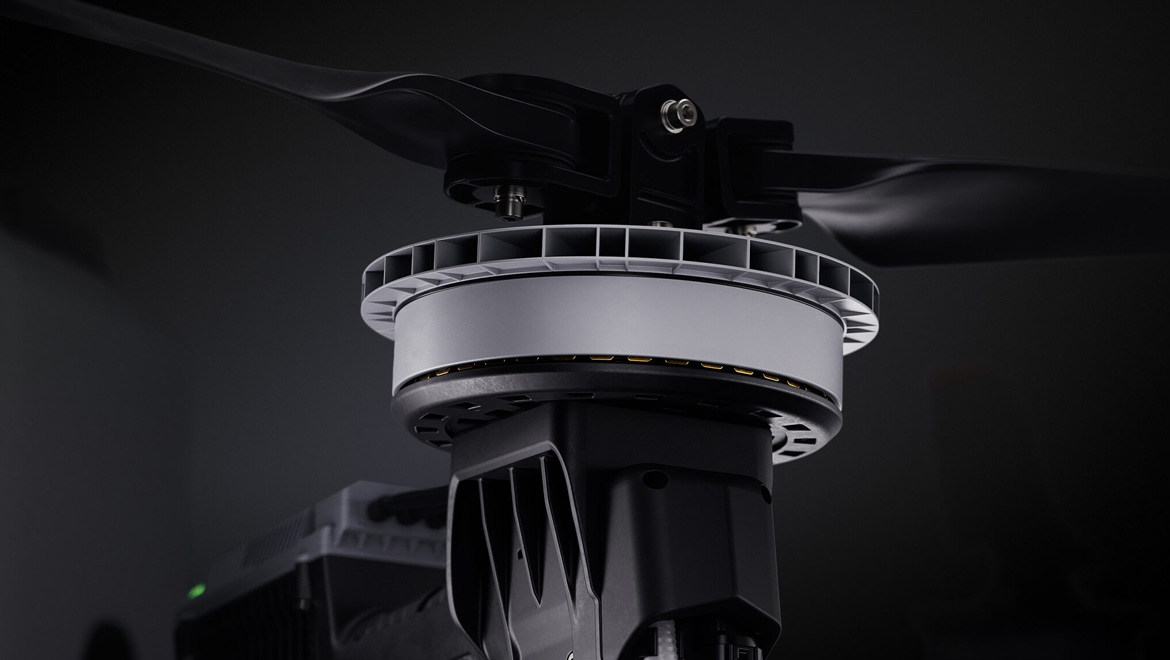

Motor Optimization
With enhancements in motor electromagnetics and craftsmanship, efficiency is improved by 3%[7].

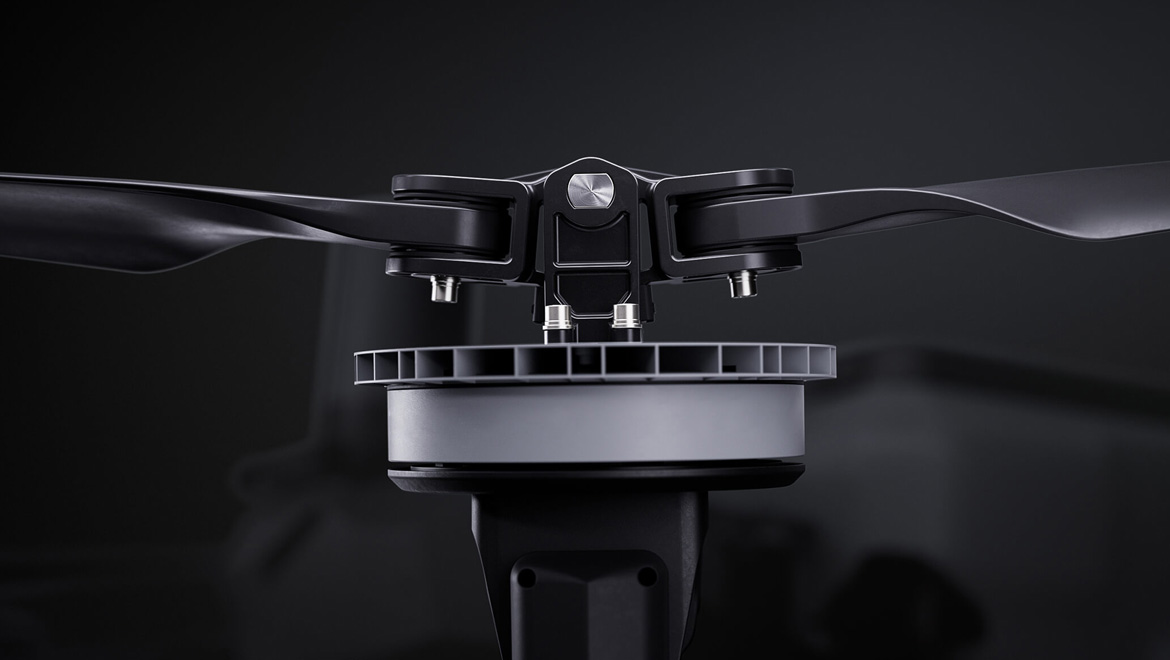

Swing Propellers Clamp
Reduces body vibration by 40%[7], resulting in more stable flight and lower power consumption.

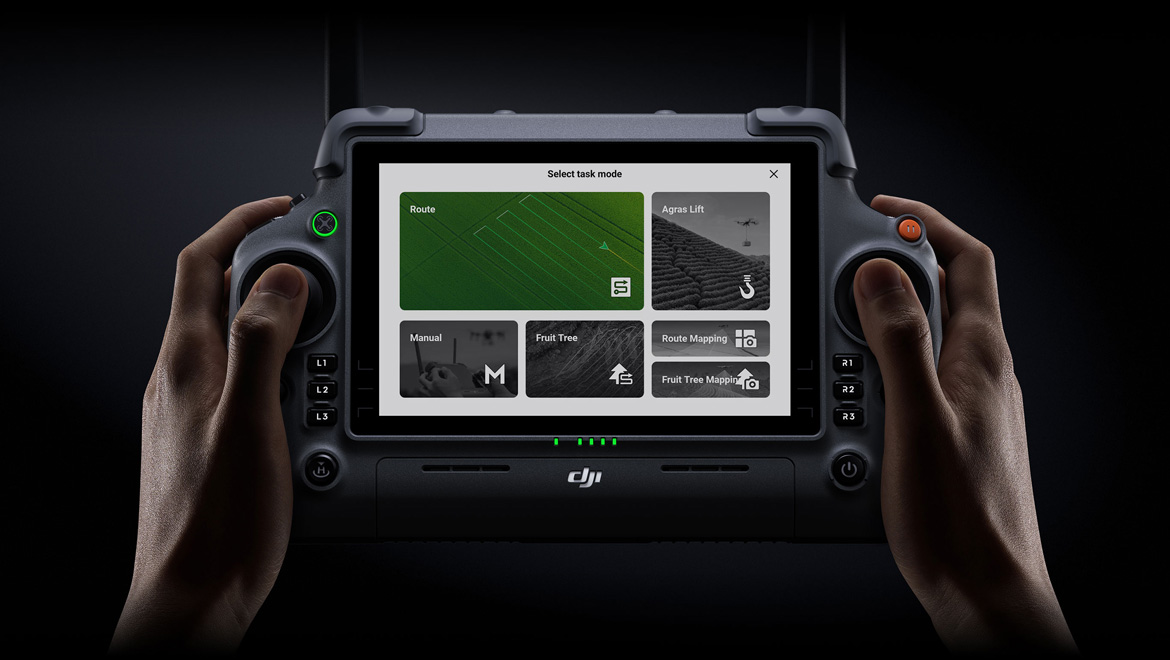

DJI RC Plus
Easy Control for New and Experienced Pilots
DJI RC Plus features a 7-inch high-brightness screen that is 16%[7] brighter for clear visibility under sunlight. Both internal and external battery life are extended by 30 minutes[7]. New backlit buttons enhance nighttime operation, and customizable physical buttons offer flexible control.
Get Started With Ease
Simply complete the field planning, and operate with one click, without the need for manual intervention.
Step 1: Easy Field Planning
Choose from multipl planning methods. Once the field is planed, the flight path is automatically generated.
Step 2: One-Click Fully Automatic Operation
Easily call up parameter templates with a single click for convenience and speed.
Step 3: Smart Return to Home
Automatically returns home when out of pesticide or low on battery.
Elevate Precision and Efficiency
Experience smooth and intuitive manual operation paired with a range of powerful, efficient assistive features. Tackle even the most challenging terrains with confidence and ease.
Multi Field Operations
Efficiently plan multiple adjacent plots in a single go. Enabling continuous operations without interruptions (in fields or orchards).
Practical Features for Manual Mode
Simplify operations on complex small plots with practical tools like one-click plot saving and one-click return to breakpoints, ensuring efficient and stress-free workflows.
Free Flight Paths
Adapt effortlessly to diverse scenarios, including mixed crops, intercropping, and paddy fields. Achieve greater operational flexibility for more efficient workflows.
Integrated Operation and Mapping[16]
Survey up to 17 hectares of large fields or 8 hectares of orchards per flight[17] with rapid reconstruction upon landing[18].
Rigorous Testing Standards
The T70P has undergone 700 hours of reliability testing, including real-flight aging, accelerated component fatigue, and extreme temperature evaluations. These ensure stability and reliability, delivering unmatched performance under various conditions.
Transmission System
Seamless Signal Stability
The upgraded O4 video transmission algorithm ensures constant signal availabilitys. O4 Relay it's designed to excel in challenging signal conditions, delivering seamless and efficient operations.
O4 Transmission
An upgraded transmission algorithm enhances the range while maintaining smooth and stable visuals for consistent performance.
Power System
Ultra-Fast Charging，Energy-Efficient Design
The T70P achieves significant power savings thanks to enhanced energy efficiency, effectively reducing operational costs. It supports two smart flight batteries, catering to varying operational needs.
（It varies between countries.）

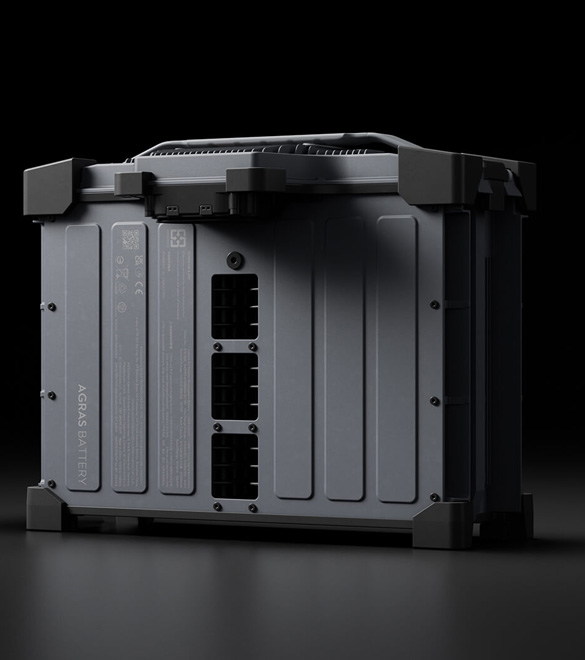

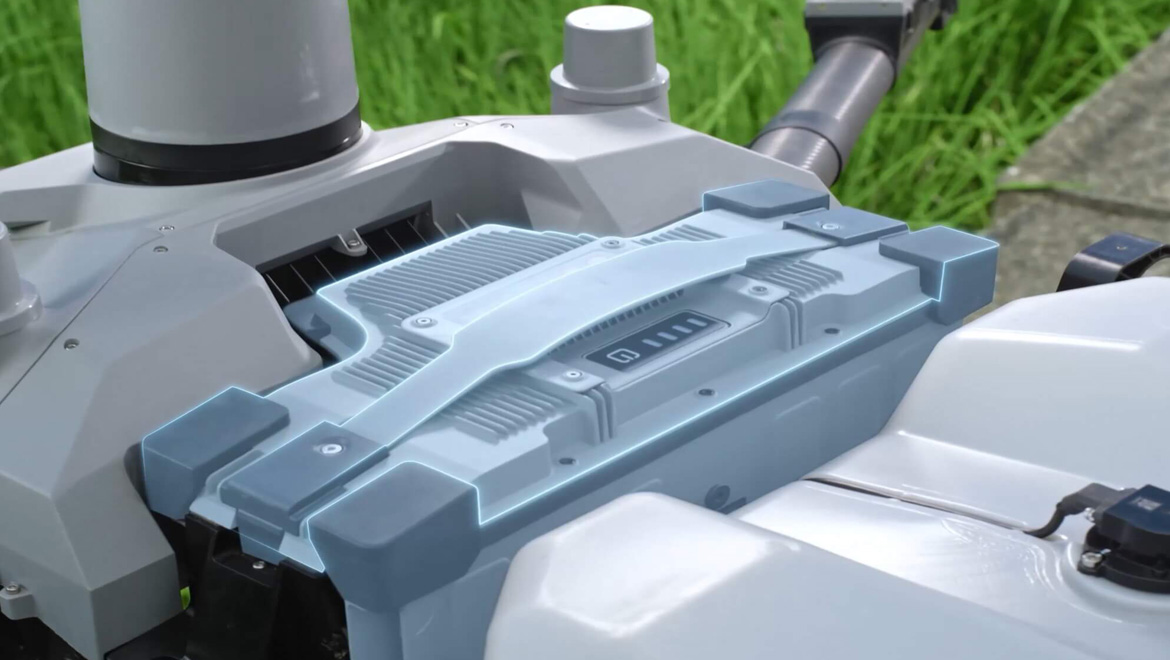

DB1580 Intelligent Flight Battery
1500 charge cycles under warranty[19]
500 A high-power connector
Weight: 11.7 kg
Ergonomic handle

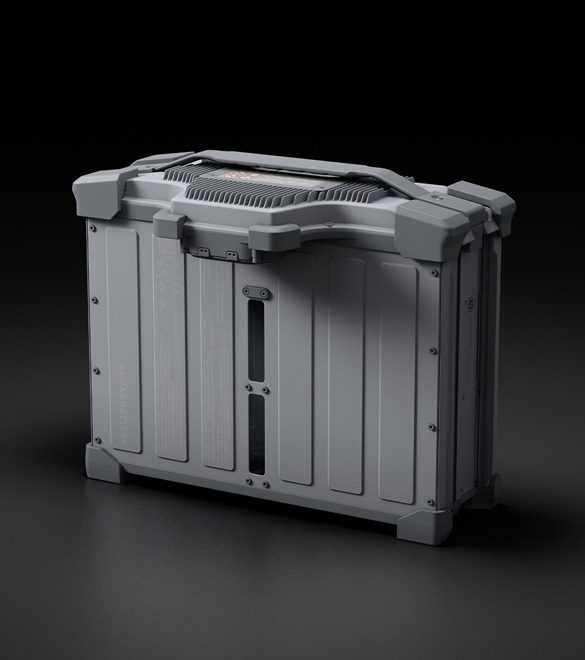

DB2160 Intelligent Flight Battery
41 Ah
1500 charge cycles under warranty[19]
500 A high-power connector
Weight: 14.7 kg
Ergonomic handle

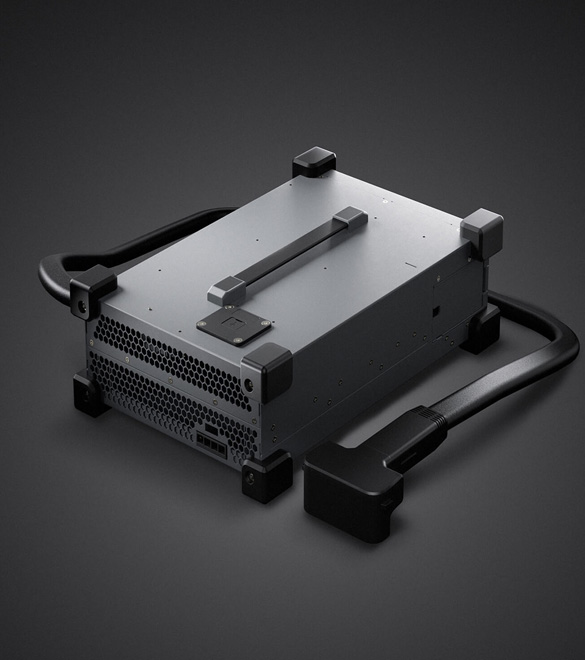

C10000 Intelligent Power Supply
Single-phase power input
9000 W fast charging[21][22]
Adaptive power protection
1.5 m charging cable

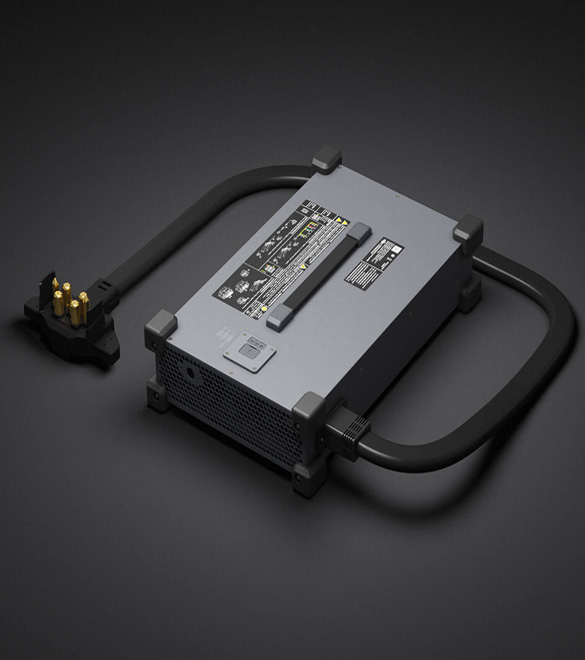

C12000 Intelligent Power Supply
Tri-phase power input
12000 W fast charging[21]
Adaptive power protection
1.8 m charging cable

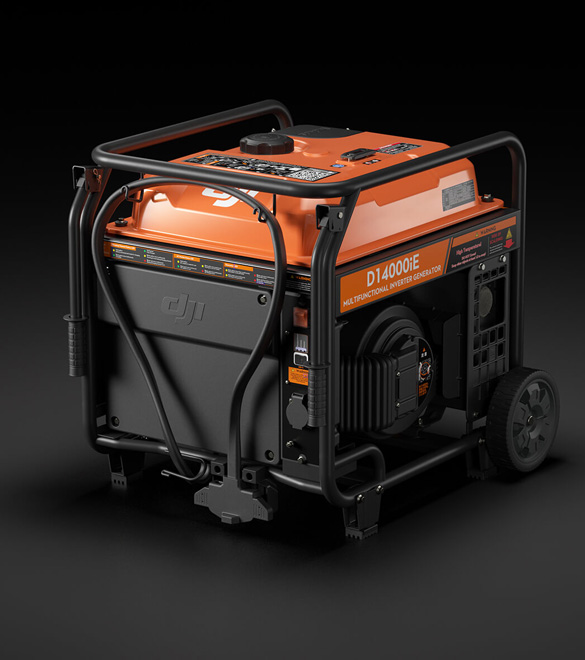

D14000iE Multifunctional Inverter Generator
11500 W fast charging[21]
1500 W AC output
1.8 m charging cable
- Notes:
- Measured at sea level, DJI Agriculture App intelligently recommends the appropriate loading weight based on the current status of the aircraft, environmental conditions, and operational tasks. Users are advised not to exceed the recommended maximum weight of the loaded granulars, may impact flight safety.
- The effective sensing range and its ability to avoid and bypass obstacles will vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles. Downward sensing is used to assist in Terrain Following flight and altitude stabilization, while other directions assist with obstacle avoidance. Any collision between the bottom of the aircraft and obstacles shall be the customer's responsibility. In scenarios without linear obstacles, if a collision occurs at speeds up to 13.8 m/s resulting in aircraft damage, responsibility can be determined through log analysis, and the aircraft may be eligible for free warranty if non-human causes are identified. If there are linear obstacles like wires or guy wires on utility poles, please mark them as obstacles; otherwise, failure to bypass them will be the customer's responsibility.
- Notes:
- Downward sensing assists in Terrain Following flight. If the bottom collides with obstacles, it is considered user responsibility.
- Due to limitations in safety system performance, the aircraft cannot automatically avoid moving objects, and accidents of this nature will be attributed to user responsibility.
- When the vision is dirty or during nighttime operations, the aircraft will use pure radar to complete terrain-following bypass operations. The effectiveness of terrain-following bypass will be reduced, so please fly cautiously. To ensure the best operational results, please clean the vision promptly when it is dirty.
- Measured with compound fertilizer. The maximum flow rate may vary due to differences in granule size, density, and surface smoothness of different fertilizers.
- A weight of 65 kg is measured below the triaxial force sensor (including the weight of the sling, and hook). Data was measured at sea level. The DJI Agras app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised. Users must comply with local regulations during operation.
- The actual operation speed of the drone is related to the terrain slope; the steeper the slope, the lower the operation speed. The maximum operating speed varies by country and operational mode, and is subject to local regulations and the actual firmware version.
- Compared to the Agras T50 drone and its supporting equipment. Test results may vary based on different testing conditions.
- The droplet diameter is measured by a laser particle size analyzer, with a 50-micron diameter using the DV50 standard.
- The effective spray width of the spraying system depends on the actual working scenario.
- Different granulars have different densities, the maximum load cannot exceed 70 kg.
- Measured at an operating height of 3 meters with a spinning disc speed of 1,100 r/min and a uniformity requirement of CV < 30%. Higher disc speeds and flight altitudes increase the spreading width.
- Suitable for granulars ranging from 0.5 to 10 mm in size. Clumps, straw, woven bags, and impurities, as well as humidity, density, hardness, and shape, can affect spreading adaptability and precision.
- The effective sensing range and its ability to avoid and bypass obstacles will vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles.
- Under good conditions, the stable observation distance for a white wire with an 11 mm diameter is 19 m, and for a utility pole, it is 25 m. The actual observation distance is affected by conditions such as lens contamination, insects, droplets, and fertilizers floating in front of the lens. During night flights, users should mark obstacles or reduce flight speed based on the actual visible distance to ensure flight safety. (After-sales confirmed data)
- At sea level, normal temperature, and with more than 30% battery power, stable and safe flight with large load is possible. When in use, ensure sufficient safety margin based on local altitude, temperature, battery cycle life, and task distance.
- Mapping operation needs to work with RTK.
- The mapping area refers to the area enclosed by the flight path. Single-flight mapping area is affected by firmware version, starting charge level, mapping type, altitude, wind conditions, field shape, slope, etc. The mapping must be conducted with no payload. Mapping operation needs to work with RTK.
- The speed of reconstruction upon landing is affected by environmental signal interference, and the actual experience in the task area should be used as a reference.
- Batteries are covered by warranty for up to 1,500 charging cycles or 12 months, whichever ends first.
- Power output may vary due to local grid factors such as distance, wire material, and diameter.
- The output power of the charging station may be affected by altitude and fuel quality.
- When using the C10000 Intelligent Power Supply to charge DB1580 and DB2160 intelligent flight batteries, it requires an adapter cable.
- Measured by laser particle size analyzer, a 50-micron diameter using the DV75 standard.
- Different granulars have different densities, the maximum load cannot exceed 100 kilograms.
- A weight of 100 kg is measured below the triaxial force sensor (including the weight of the sling, and hook). Data was measured at sea level. The DJI Agras app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised. Users must comply with local regulations during operation.
- Different granulars have different densities, the maximum load cannot exceed 25 kg.
| Aircraft | |
|---|---|
| Weight |
|
| Max Takeoff Weight[1] |
|
| Max Diagonal Wheelbase | 2440 mm |
| Dimensions |
|
| Hovering Accuracy Range (with strong GNSS signal) |
|
| Max Configurable Flight Radius | 2 km |
| Operating Temperature | 0°C to 40°C |
| Max Wind Resistance | <6 m/s |
| Propulsion System - Motors | |
| Stator Size | 155 × 22 mm |
| KV | 65 rpm/V |
| Propulsion System - Propellers | |
| Material | Carbon Fiber Composite |
| Dimensions | 62 inches |
| Quantity | 4 |
| Spraying System - Spray Tank | |
| Material | HDPE |
| Volume | 70 L |
| Operating Payload | 70 kg |
| Spraying System - Sprinklers | |
| Model | LX07550SX (Standard Nozzle) / LX09550SX (Optional Mist Nozzle) |
| Quantity | 2 (Standard) / 4 (Optional) |
| Nozzle Distance | 1874 mm (Rear Nozzles) |
| Droplet Size | 50 - 500 μm |
| Effective Spray Width[2] | 4 - 11 m |
| Spraying system - Delivery Pumps | |
| Type | Impeller Pump (Magnetic Drive) |
| Quantity | 2 |
| Max Flow Rate |
|
| Spreading System 4.0 | |
| Compatible Material Diameter |
|
| Spreading Tank Volume | 100 L |
| Spreader structure type | Centrifugal Disc |
| Discharge Structure Type | Feeder Feeding |
| Max Discharge Rate | 400 kg/min (compound fertilizer) |
| Max load inside the spreading operation box | 70 kg |
| Effective spreading width[3] | 3 - 10 m |
| Lifting system | |
| Load capacity[4] | 65 kg |
| Lifting Cable Length | 10 m (standard configuration) |
| Recommended cable length | 10 - 15 m |
| Operating Temperature | 0 °C to 40 °C |
| Safety System 3.0 | |
| Millimeter wave radar EIRP | < 20 dBm (NCC / MIC / KC / CE / FCC) |
| Operating Temperature | 0°C to 40°C |
| Operating Environment | Adequate light and discernible surroundings |
| Field of View (FOV) |
|
| Range[4] | ≤ 60 m |
| Effective safe obstacle avoidance speed[5] | ≤ 13.8 m/s |
| Effective Obstacle Avoidance Height | ≥ 1.5 m |
| Remote Controller | |
| Model | TKPL 2 |
| Screen | 7-inch LCD touchscreen; resolution: 1920 × 1200; brightness: 1400 cd/m² |
| Storage Temperature Range |
|
| Charging Temperature | 5° to 40°C |
| Internal Battery Runtime | 3.8 hours |
| External Battery Runtime | 3.2 hours |
| Charging Type | Use a USB-C fast charger with a maximum power of 65 W (maximum voltage 20 V), and it is recommended to use the DJI Portable Charger. |
| Charging Time | 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger) |
| DB1580 Intelligent Flight Battery | |
| Weight[1] | 11.7 ± 0.3 kg |
| Capacity | 30000 mAh |
| Nominal Voltage | 52 V |
| DB2160 Intelligent Flight Battery | |
| Weight[1] | 14.7 ± 0.3 kg |
| Capacity | 41000 mAh |
| Nominal Voltage | 52 V |
| D14000iE Multifunctional Inverter Generator | |
| Output Channels |
|
| Recharge Time[6] |
|
| Fuel tank capacity | 30 L |
| Starting Method | Starting the Generator via the One-Button Start Switch |
| Operating Temperature | 0°C to 40°C |
| Compatible Battery | DB1580 / DB2160 Intelligent Flight Battery |
| Dimensions | 757 mm × 704 mm × 677 mm |
| Weight[1] | 87 ± 0.5 kg |
| Fuel type | Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10%(*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%) |
| Reference fuel consumption | 500 mL/kWh |
| Engine Oil Model | SJ 10W-40 |
| C12000 Smart Charger | |
| Charger Model | CSX901-12000 |
| Dimensions | 456 mm × 291 mm × 107 mm |
| Weight[1] | 13.13 kg |
| Input |
|
| Output | 62 V |
| Rated output current | 194 A |
| Rated Power |
|
| Charging Time[6] |
|
| Protection functions | Over-voltage, over-charge, under-voltage and over-temperature protection. |
| Operating Temperature | 0° to 40°C |
| Output Channels | 1 |
| Compatible with Intelligent Flight Battery | DB1580 / DB2160 Intelligent Flight Battery |
| Relay | |
| Dimensions |
|
| Weight[1] | 630 g |
| Input | 2.7V - 24V |
| Power consumption | 10.48 W (FCC), 8.8 W (SRRC) |
| Battery capacity | 6500 mAh |
| Operating Time | 5 hours |
| Operating Frequency | 2.4000 - 2.4835 GHz, 5.150 - 5.250 GHz, 5.725 - 5.850 GHz |
| Effective signal range | 5 km (SRRC), 4 km (MIC/KCC/CE), 8 km (FCC) (In an interference-free, unobstructed environment, flight altitude 2.5 m) |
| Charging Time | 2.5 hours (30W recharge) |
| Ingress Protection Rating | IP55 |
| D-RTK 3 AG | |
| Supports satellite systems |
|
| Dimensions | 345 mm × 244 mm × 300 mm |
| Weight[1] | 3.77 kg (including packaging) |
| Power consumption | 7 W |
| Battery capacity | 6500 mAh |
| Operating Time | 7 hours |
| Operating Frequency | Broadcast mode: O4: 2.4G/5.8G |
| Effective signal range |
|
| Charging Time | 2.5 hours (30W recharge) |
| Ingress Protection Rating | IP67 |
| Positioning Accuracy[7] |
|
| Footnotes | |
| |
