360W Solar Power Recharging Kit

Out of Stock

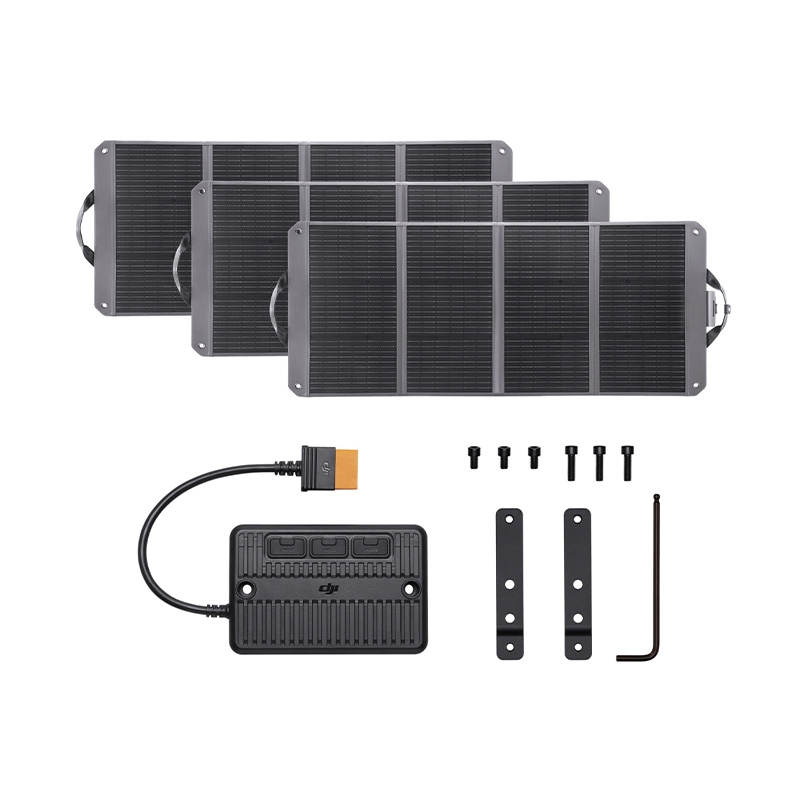

Includes DJI Power Solar Panel Adapter Module (MPPT) and three Zignes 120W Solar Panels for solar recharging of DJI Power-series power stations.

Compatibility:

More details

956,00 € VAT incl. (20%)
796,67 € VAT excl.

More info

360W Solar Power Recharging Kit
OverviewDJI Power series can be connected to solar panels through the DJI Power Solar Panel Adapter Module (MPPT) for eco-friendly solar power recharging. MPPT (Maximum Power Point Tracking) is an intelligent algorithm that supports real-time monitoring of the voltage generated by connected solar panels. By tracking and maintaining the highest voltage and current values (V-I), the algorithm allows the solar panels to recharge DJI Power series in an optimized and efficient way.

When using an MPPT module with three Zignes 120W Solar Panels to recharge DJI Power 2000, it takes about 6 to 12 hours to recharge from 0% to 100%.*

When using an MPPT module with three Zignes 120W Solar Panels to recharge DJI Power 1000/1000 V2, it takes about 3 to 6 hours to recharge from 0% to 100%.*

When using an MPPT module with three Zignes 120W Solar Panels to recharge DJI Power 500, it takes about 1.8 to 4 hours to recharge from 0% to 100%.*

*Actual recharging time is subject to factors like the angle of sunlight and light intensity. Actual user experience may vary.
Tips
  1. One MPPT module can connect to one to three solar panels.
  2. Zignes Solar Panels After-sales Service:
    Return Period: 30 days (from the date of receipt of the package)
    Exchange Period: 30 days (from the date of receipt of the package)
    Warranty Period: 2 years *After-sales services are provided by DJI.
In The Box

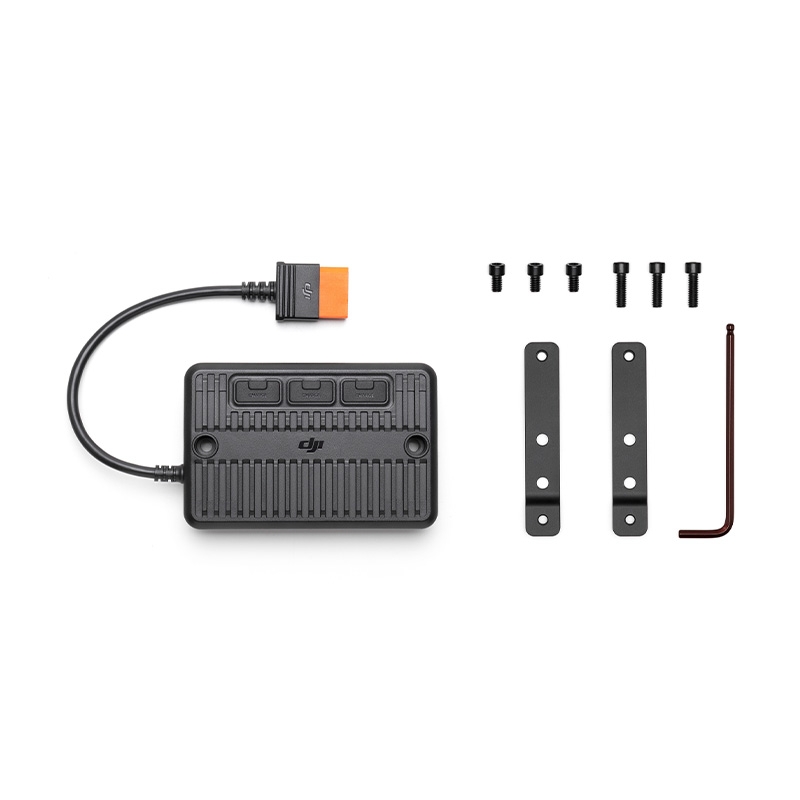

  • DJI Power Solar Panel Adapter Module (MPPT) ×1
  • Metal Heat Dissipation Bracket ×2
  • Ball-End Hey Key ×1
  • 10mm Screw ×3
  • 20mm Screw ×3
  • Zignes 120W Solar Panel ×3
Specifications
  • DJI Power Solar Panel Adapter Module (MPPT):
    • Total Output:
      • Single Channel:
        • Max 200 W
      • Triple Channels:
        • Max 400 W (with DJI Power 1000/1000 V2/2000)
        • Max 300 W (with DJI Power 500)
    • Input Voltage: 12-30 V, DC
    • Max Input Current:
    • Single Channel: 10 A
    • Triple Channels: 16 A
    • Operating Temperature: -10° to 45° C

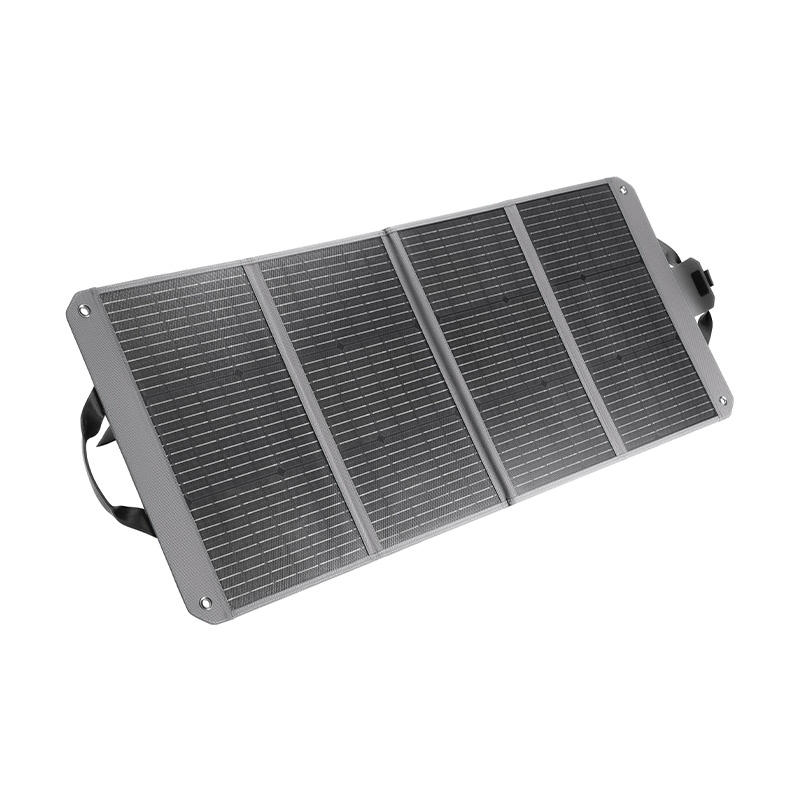

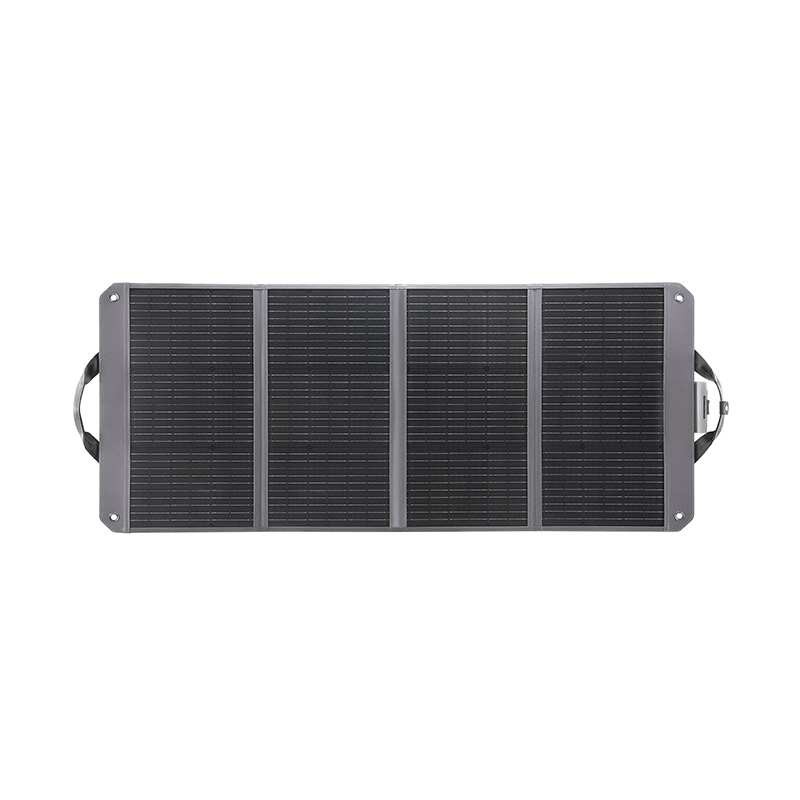

  • Zignes 120W Solar Panel:
    • Rated Power: 120 W
    • Open-circuit Voltage: Max 26 V
    • Short-circuit Current: Max 7 A
    • Weight: Approx. 4.8 kg
    • Unfolded Dimensions: 585×1523×28 mm (L×W×H)
    • Folded dimensions: 585 × 371 × 55 mm (L×W×H)
    • Operating Temperature: -20° to 60° C
